CL88030T-E/MF - Microchip

Description: Suitable for 120VAC/230VAC/277VAC Nominal Input Voltage - ± 15% Input voltage tolerance recommended • Targeted for 2W and Greater Output Power • Programmable Overtemperature Protection - Provides gradual reduction in light output with increasing temperature • Active Line Regulation - Provides fairly constant output power over variations in AC line voltage - Adjustable “knee” of regulation • Four Taps (CL88030) or Six Taps (CL88031) with Two Current Set Resistors - Allows optimization of THD •

Download CL88030T-E/MF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

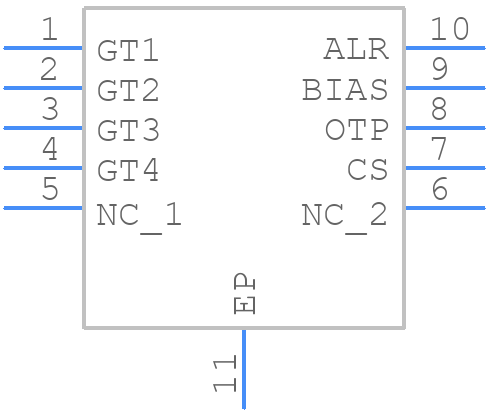

CL88030T-E/MF - Microchip - PCB symbol
click to zoom
PCB Footprints
CL88030T-E/MF - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Plastic Dual Flat, No Lead Package (MF) -3x30.9mm Body [DFN]
click to zoom
3D Models
CL88030T-E/MF - Microchip - 3D model - Small Outline No-lead - 10-Lead Plastic Dual Flat, No Lead Package (MF) -3x30.9mm Body [DFN]
click to zoom

CL88030T-E/MF Details

  • Manufacturer Part Number:

    CL88030T-E/MF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    DFN-10

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    20

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    10

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    12 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    11 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

CL88030T-E/MF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. Ensure that the thermal pad is connected to a solid ground plane to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current limits. Use a reliable power supply, and consider using a voltage regulator to maintain a stable voltage. Also, ensure good thermal management and avoid overheating.
  • Use a shielded enclosure, and ensure that the PCB is designed with EMI and RFI mitigation in mind. Use decoupling capacitors, and consider using a common-mode choke to reduce EMI. Also, ensure that the device is operated within the recommended frequency range.
  • Use a logic analyzer or oscilloscope to monitor the device's signals. Check the power supply voltage and current, and ensure that the device is operated within the recommended specifications. Consult the datasheet and application notes for troubleshooting guidelines.
  • Use a redundant design, and ensure that the device is operated within the recommended specifications. Consider using a watchdog timer, and implement error detection and correction mechanisms. Also, ensure that the device is manufactured and tested according to high-reliability standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CL88030T-E/MF Overview

Use the download button to access the CL88030T-E/MF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CL880, or try a keyword search, such as Display Drivers
