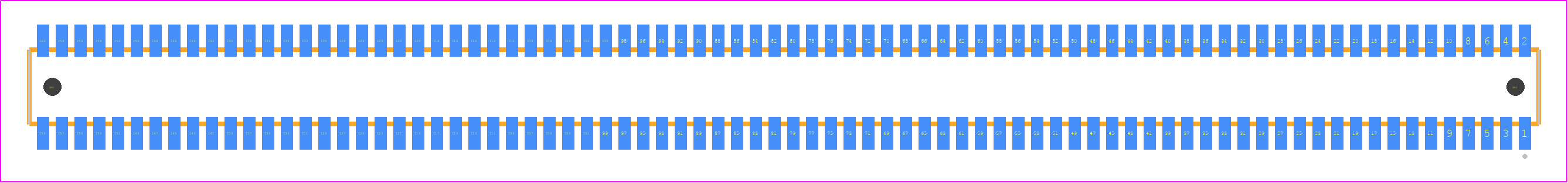

CLE-180-01-F-DV-A - SAMTEC

CLE-180-01-F-DV-A Details

• Manufacturer Part Number:

  CLE-180-01-F-DV-A

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  9

• Board Mounting Option:

  HOLE 0.027

• Body Breadth:

  0.125 inch

• Body Depth:

  0.13 inch

• Body Length:

  2.525 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• Filter Feature:

  NO

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.032 inch

• Mating Contact Row Spacing:

  0.047 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  3.96 mm

• Plating Thickness:

  FLASH inch

• Rated Current (Signal):

  2.7 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.8 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  160

• UL Flammability Code:

  94V-0
