CLM-111-02-L-D-A footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

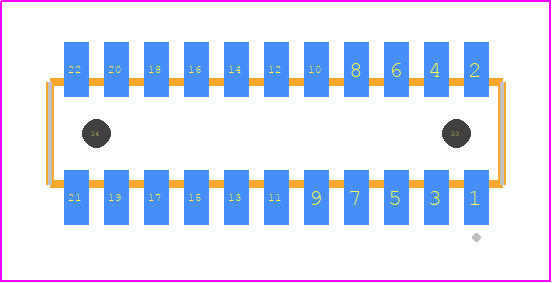

PCB Footprints

CLM-111-02-L-D-A - SAMTEC PCB footprint - Other - Other - CLM-111-02-XX-D-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CLM-111-02-L-D-A
Part Number CLM-111-02-L-D-A
Manufacturer SAMTEC
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - CLM-111-02-XX-D-A
Released Date Jun 18, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CLM-111-02-L-D-A Details

Manufacturer Part Number:
CLM-111-02-L-D-A
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
10
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
1 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
22

CLM-111-02-L-D-A Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) as per Samtec's application notes.
Yes, the CLM-111-02-L-D-A connector is designed to withstand vibration and shock per IEC 61373 Cat 2, making it suitable for high-vibration environments.
The maximum operating temperature range for the CLM-111-02-L-D-A connector is -55°C to +125°C, as per Samtec's datasheet.
Yes, the CLM-111-02-L-D-A connector is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
The mating cycle life of the CLM-111-02-L-D-A connector is 500 cycles minimum, as per Samtec's datasheet.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

CLM-111-02-L-D-A Overview

Use the download button to access the CLM-111-02-L-D-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CLM-1, or try a keyword search, such as Headers and Edge Type Connectors
