CLP-124-02-G-D-P-TR footprint, schematic symbol and 3D model by SAMTEC

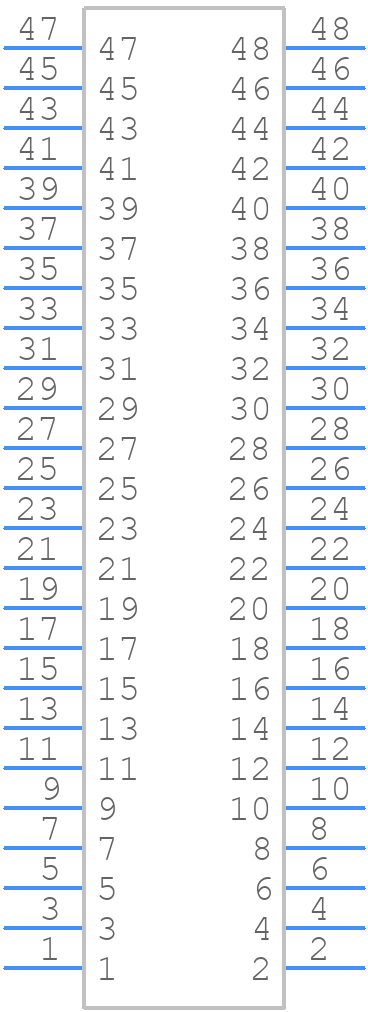

Symbol

click to zoom

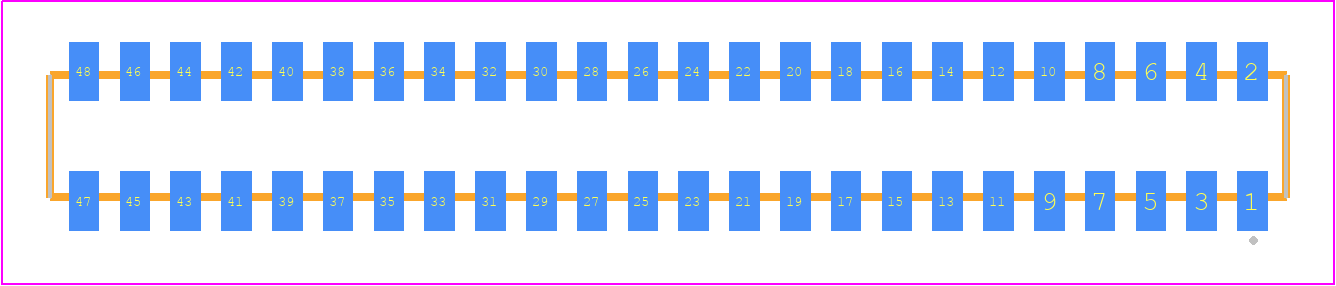

PCB Footprints

CLP-124-02-G-D-P-TR - SAMTEC PCB footprint - Other - Other - CLP-124-02-XXX-D-P-TR

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CLP-124-02-G-D-P-TR
Part Number CLP-124-02-G-D-P-TR
Manufacturer SAMTEC
Pin Count 48
Part Category Connector
Package Category Other
Footprint Name Other - CLP-124-02-XXX-D-P-TR
Released Date Jun 18, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CLP-124-02-G-D-P-TR Details

Manufacturer Part Number:
CLP-124-02-G-D-P-TR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
12
Additional Feature:
LOW PROFILE
Body Breadth:
0.12 inch
Body Depth:
0.09 inch
Body Length:
1.217 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
15 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Dielectric Withstanding Voltage:
280VAC V
Durability:
100 Cycles
Filter Feature:
NO
IEC Conformance:
NO
Insertion Force-Max:
1.112 N
Insulation Resistance:
5000000000 Ω
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
3.23 mm
Packing Method:
TR
Plating Thickness:
10u inch
Rated Current (Signal):
3.4 A
Reference Standard:
UL
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
48
UL Flammability Code:
94V-0
Withdrawl Force-Min:
.556 N

CLP-124-02-G-D-P-TR Frequently Asked Questions (FAQs)

The recommended torque for the screw-down mechanism is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure proper mating and prevent damage to the connector.
Yes, the CLP-124-02-G-D-P-TR is designed to withstand high-vibration environments. Samtec's CLP series connectors are tested to meet the requirements of IEC 61373 Cat. 2, which includes vibration testing up to 57.3 Hz, 1.5 mm amplitude.
The operating temperature range for the CLP-124-02-G-D-P-TR is -55°C to 125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
Yes, the CLP-124-02-G-D-P-TR is compatible with lead-free soldering processes. Samtec's connectors are designed to meet the requirements of RoHS and WEEE directives, and are compatible with lead-free soldering temperatures up to 260°C.
The mating cycle life of the CLP-124-02-G-D-P-TR is 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

CLP-124-02-G-D-P-TR Overview

Use the download button to access the CLP-124-02-G-D-P-TR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like CLP-1, or try a keyword search, such as Headers and Edge Type Connectors
