CLRC66301HN,551 footprint, schematic symbol and 3D model by NXP

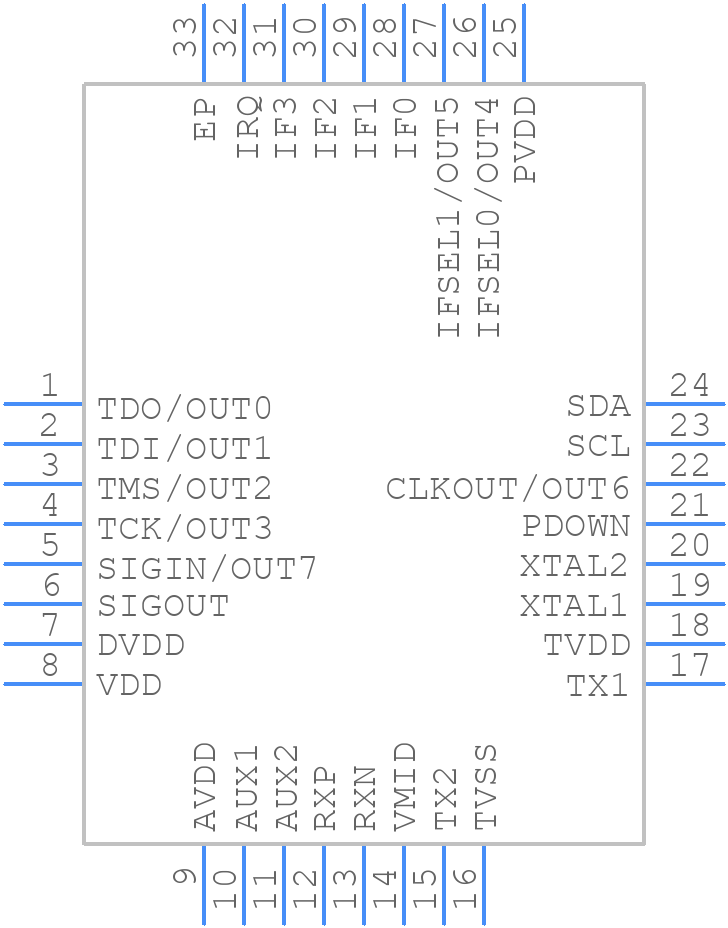

Symbol

click to zoom

PCB Footprints

CLRC66301HN,551 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN32_2021

click to zoom

3D Models

CLRC66301HN,551 - NXP - 3D model - Quad Flat No-Lead - HVQFN32_2021

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for CLRC66301HN,551
Part Number CLRC66301HN,551
Manufacturer NXP
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - HVQFN32_2021
Released Date May 22, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CLRC66301HN,551 Details

Manufacturer Part Number:
CLRC66301HN,551
Source Url Status Check Date:
2013-06-14 00:00:00
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
HVQFN-32
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
13 Weeks
Manufacturer:
NXP Semiconductors
JESD-30 Code:
S-PQCC-N32
Length:
5 mm
Moisture Sensitivity Level:
2
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm
uPs/uCs/Peripheral ICs Type:
NFC CONTROLLER

CLRC66301HN,551 Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate layer for the antenna is recommended. Keep the RF traces as short as possible and avoid vias under the antenna. Refer to the NXP application note AN11835 for more details.
Use the lowest possible clock frequency, disable unnecessary peripherals, and use the power-down mode when not transmitting. Also, consider using the low-power mode (LPM) and adjust the transmission power to the minimum required for your application.
The CLRC66301HN is specified to operate from -40°C to 105°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal design and consider using thermal pads or heat sinks for high-temperature applications.
Yes, the CLRC66301HN is NFC Forum-compliant and supports NFC reader and peer-to-peer modes. However, additional components and firmware are required to implement a complete NFC solution.
Use a network analyzer to measure the antenna's impedance and adjust the tuning components (e.g., capacitors and inductors) to achieve a 50-ohm impedance match. Refer to the NXP application note AN11835 for more details.

Trust Checks

Community Provided

System Verified

Community Approved

CLRC66301HN,551 Overview

Use the download button to access the CLRC66301HN,551 schematic symbol, PCB footprint, and 3D model.
