CLT01-38S4 - STMicroelectronics

Description: Octal industrial digital input current limiter with serialized output

Download CLT01-38S4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

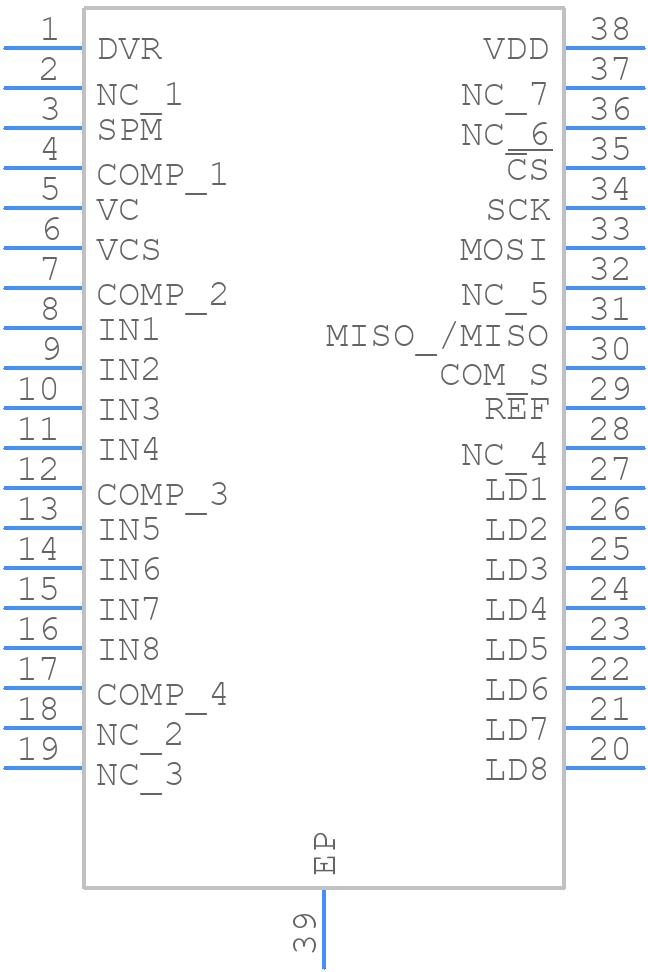

Symbol
CLT01-38S4 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
CLT01-38S4 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP-38
click to zoom
3D Models
CLT01-38S4 - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP-38
click to zoom

CLT01-38S4 Details

  • Manufacturer Part Number:

    CLT01-38S4

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HTSSOP-38

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Interface IC Type:

    Digital I/P Module

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

CLT01-38S4 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor value depends on the input voltage, output voltage, and output current. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating higher than the input voltage. Consult the application note AN5323 for more detailed guidance.
  • The CLT01-38S4 can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal management and heat dissipation to prevent overheating.
  • Yes, the CLT01-38S4 is AEC-Q100 qualified, making it suitable for automotive and high-reliability applications. However, ensure that you follow the recommended design and manufacturing guidelines to meet the required standards.
  • Consult the troubleshooting section in the application note AN5323, which provides guidance on identifying and resolving common issues. Additionally, check the PCB layout, component selection, and input/output connections to ensure they meet the recommended specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CLT01-38S4 Overview

Use the download button to access the CLT01-38S4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CLT01, or try a keyword search, such as Other Interface ICs
