CLT03-2Q3 - STMicroelectronics

Description: Inrush Current Limiters DFD PROTECTION & FILTER

Download CLT03-2Q3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

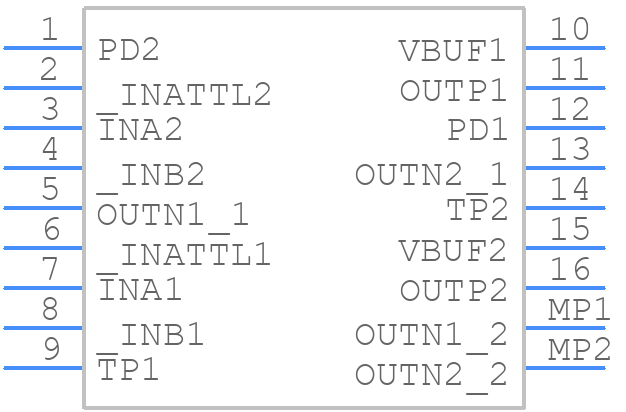

CLT03-2Q3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
CLT03-2Q3 - STMicroelectronics PCB footprint - Other - Other - CLT03-2Q3-1
click to zoom
3D Models
CLT03-2Q3 - STMicroelectronics - 3D model - Other - CLT03-2Q3-1
click to zoom

CLT03-2Q3 Details

  • Manufacturer Part Number:

    CLT03-2Q3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

CLT03-2Q3 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Ensure that the input and output pins are separated by a ground plane to minimize crosstalk.
  • Apply a stable voltage supply to the VCC pin, and ensure the input voltage is within the recommended range (1.65V to 3.6V). Use a decoupling capacitor (e.g., 100nF) between VCC and GND to filter out noise.
  • The CLT03-2Q3 can operate up to 100 MHz, but the actual frequency limit depends on the specific application, PCB layout, and signal quality. Consult the datasheet and application notes for more information.
  • Use ESD protection devices (e.g., TVS diodes) on the input and output pins to prevent damage from electrostatic discharge. Ensure the ESD protection devices are rated for the maximum voltage and current of the application.
  • Use a heat sink or thermal pad to dissipate heat. Ensure good airflow around the device, and consider using a thermal interface material (e.g., thermal tape) to improve heat transfer.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CLT03-2Q3 Overview

Use the download button to access the CLT03-2Q3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CLT03, or try a keyword search, such as Other Signal Circuits
