CM102S+ - C-MEDIA ELECTRONICS INC

Description: 0C to +70C USB 2CH Audio Controller Speaker 18-Pin SOP Package

Download CM102S+ Model

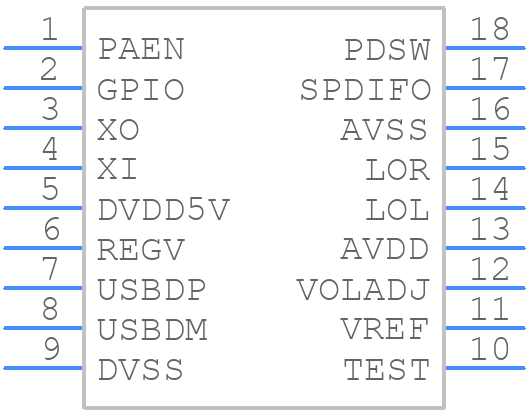

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CM102S+ - C-MEDIA ELECTRONICS INC PCB footprint - Small Outline Packages - Small Outline Packages - 18- Pin SOP
click to zoom
3D Models
CM102S+ - C-MEDIA ELECTRONICS INC  - 3D model - Small Outline Packages - 18- Pin SOP
click to zoom

CM102S+ Details

  • Manufacturer Part Number:

    CM102S+

  • Part Life Cycle Code:

    Contact Manufacturer

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    C-Media Electronics Inc

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G18

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    500 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL
