CM1214A-02MR - onsemi

Description: Single channel ESD protection for an AC signal up to ±5 V for 0.25 W transmit power; Connects two channels in series for signals up to 10 V (1 W transmit power)

Download CM1214A-02MR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

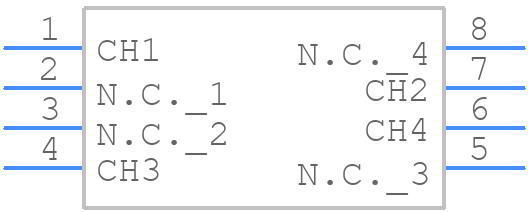

CM1214A-02MR - onsemi - PCB symbol
click to zoom
PCB Footprints
CM1214A-02MR - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MICRO8 CASE 846A-02 ISSUE H
click to zoom
3D Models
CM1214A-02MR - onsemi - 3D model - Small Outline Packages - MICRO8 CASE 846A-02 ISSUE H
click to zoom

CM1214A-02MR Details

  • Manufacturer Part Number:

    CM1214A-02MR

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    Micro 8 lead Surface Mount

  • Package Description:

    MSOP-10

  • Pin Count:

    8

  • Manufacturer Package Code:

    846A-02

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Clamping Voltage-Max:

    11.3 V

  • Configuration:

    SEPARATE, 2 ELEMENTS, 4 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    MO-187AA

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Power Dissipation-Max:

    0.4 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    7 V

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    5.5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

CM1214A-02MR Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2 oz copper thickness and a thermal relief pattern are recommended. Refer to the onsemi application note AND9173/D for more details.
  • Ensure that the device is operated within the recommended voltage and current ratings. Use a suitable heat sink and thermal interface material to maintain a junction temperature below 150°C. Follow the recommended PCB layout and thermal design guidelines.
  • The CM1214A-02MR has built-in ESD protection diodes on all pins. However, it is still recommended to follow proper ESD handling and storage procedures. For latch-up prevention, ensure that the device is operated within the recommended voltage and current ratings, and avoid voltage spikes or transients on the power supply lines.
  • Yes, the CM1214A-02MR is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a qualified process. However, additional testing and validation may be required for specific applications.
  • Follow the onsemi recommended soldering and rework guidelines, which include a peak temperature of 260°C, a soldering time of 10 seconds, and a maximum of 3 rework cycles. Refer to the onsemi application note AND9174/D for more details.
