CM150MXUD-24T1 - Mitsubishi

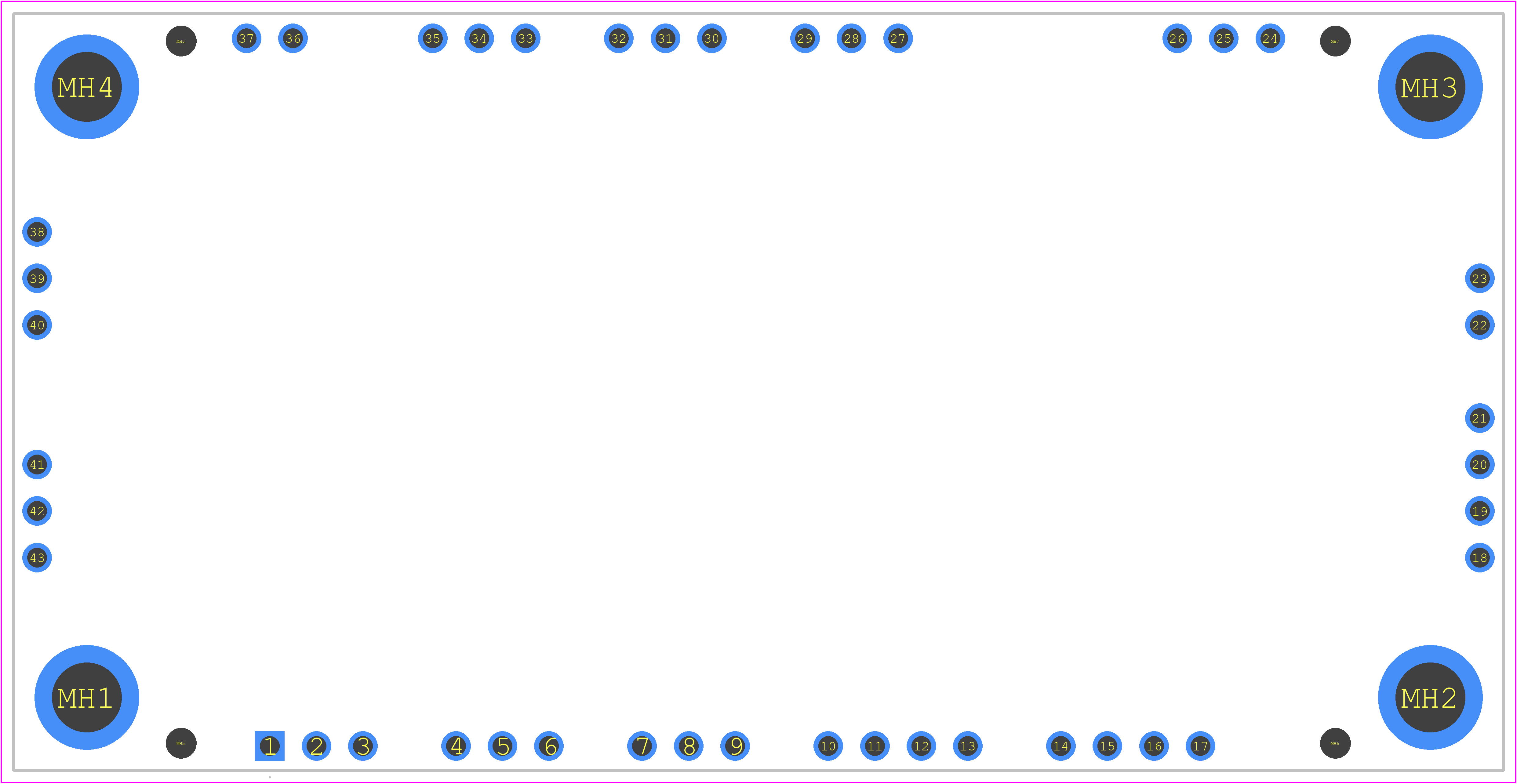

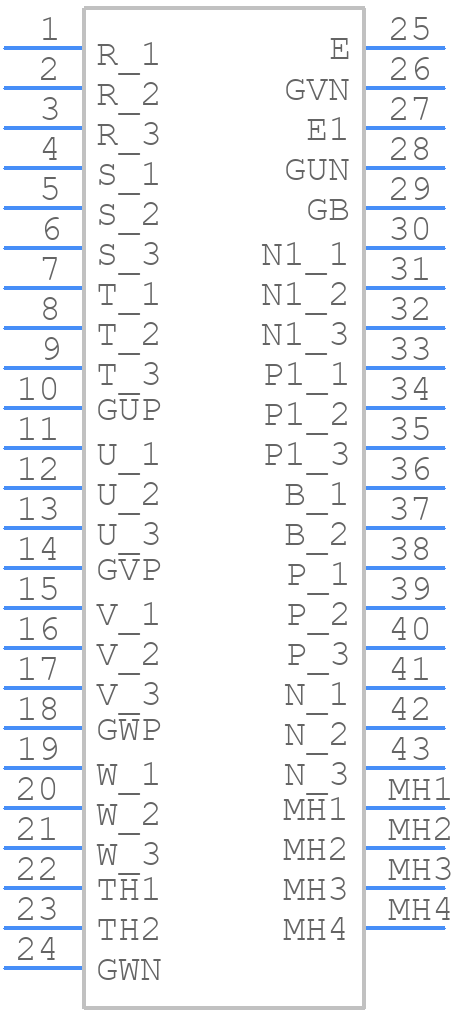

CM150MXUD-24T1 Details

• Manufacturer Part Number:

  CM150MXUD-24T1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  Mitsubishi Electric

• YTEOL:

  5.35

• Case Connection:

  ISOLATED

• Collector Current-Max (IC):

  150 A

• Collector-Emitter Voltage-Max:

  1200 V

• Configuration:

  COMPLEX

• Fall Time-Max (tf):

  400 ns

• Gate-Emitter Thr Voltage-Max:

  6.6 V

• Gate-Emitter Voltage-Max:

  20 V

• JESD-30 Code:

  R-PUFM-X43

• Number of Elements:

  7

• Number of Terminals:

  43

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  565 W

• Reference Standard:

  UL RECOGNIZED

• Rise Time-Max (tr):

  150 ns

• Surface Mount:

  NO

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  UPPER

• Transistor Application:

  POWER CONTROL

• Transistor Element Material:

  SILICON

• Turn-off Time-Max (toff):

  900 ns

• Turn-on Time-Max (ton):

  450 ns

• VCEsat-Max:

  2.7 V
