CM2009-02QR - onsemi

Description: Obsolete - HDMI Transmitter Port Protection and Interface Device

Download CM2009-02QR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

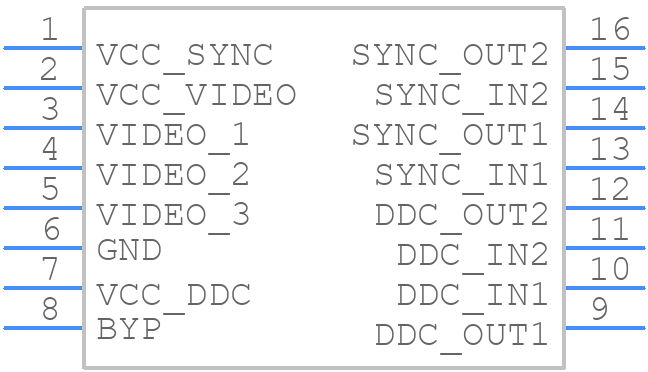

CM2009-02QR - onsemi - PCB symbol
click to zoom
PCB Footprints
CM2009-02QR - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - QSOP16 CASE 492−01 ISSUE A_2024
click to zoom
3D Models
CM2009-02QR - onsemi - 3D model - Small Outline Packages - QSOP16 CASE 492−01 ISSUE A_2024
click to zoom

CM2009-02QR Details

  • Manufacturer Part Number:

    CM2009-02QR

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    492-01

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

CM2009-02QR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature and adjust the system accordingly.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage below 5V to ensure reliable operation.
  • Yes, the CM2009-02QR is qualified for automotive and high-reliability applications. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the required standards.
  • Implement ESD protection measures, such as TVS diodes or ESD protection arrays, on the input and output pins. Follow the recommended PCB layout and handling guidelines to prevent ESD damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CM2009-02QR Overview

Use the download button to access the CM2009-02QR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CM200, or try a keyword search, such as Other Consumer ICs
