CM5022R201R-10 - Laird Technologies

Description: 8 Line Common Mode Choke Surface Mount 200 Ohms @ 100 MHz 5A DCR 20mOhm , -40°C ~ 125°C

Download CM5022R201R-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

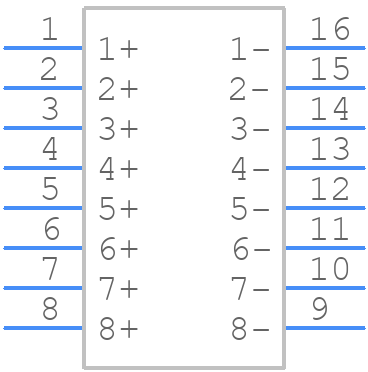

CM5022R201R-10 - Laird Technologies - PCB symbol
click to zoom
PCB Footprints
CM5022R201R-10 - Laird Technologies PCB footprint - Other - Other - 16 Flat Lead
click to zoom
3D Models
CM5022R201R-10 - Laird Technologies - 3D model - Other - 16 Flat Lead
click to zoom

CM5022R201R-10 Details

  • Manufacturer Part Number:

    CM5022R201R-10

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Qnity Laird

  • YTEOL:

    6.59

  • DC Resistance-Max:

    0.02 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    9.53 mm

  • JESD-609 Code:

    e3

  • Length:

    12.57 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    8

  • Output Impedance:

    200 OHM Ω

  • Rated Current:

    5 A

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Width:

    5.72 mm
