CM50MD1-12H - Mitsubishi

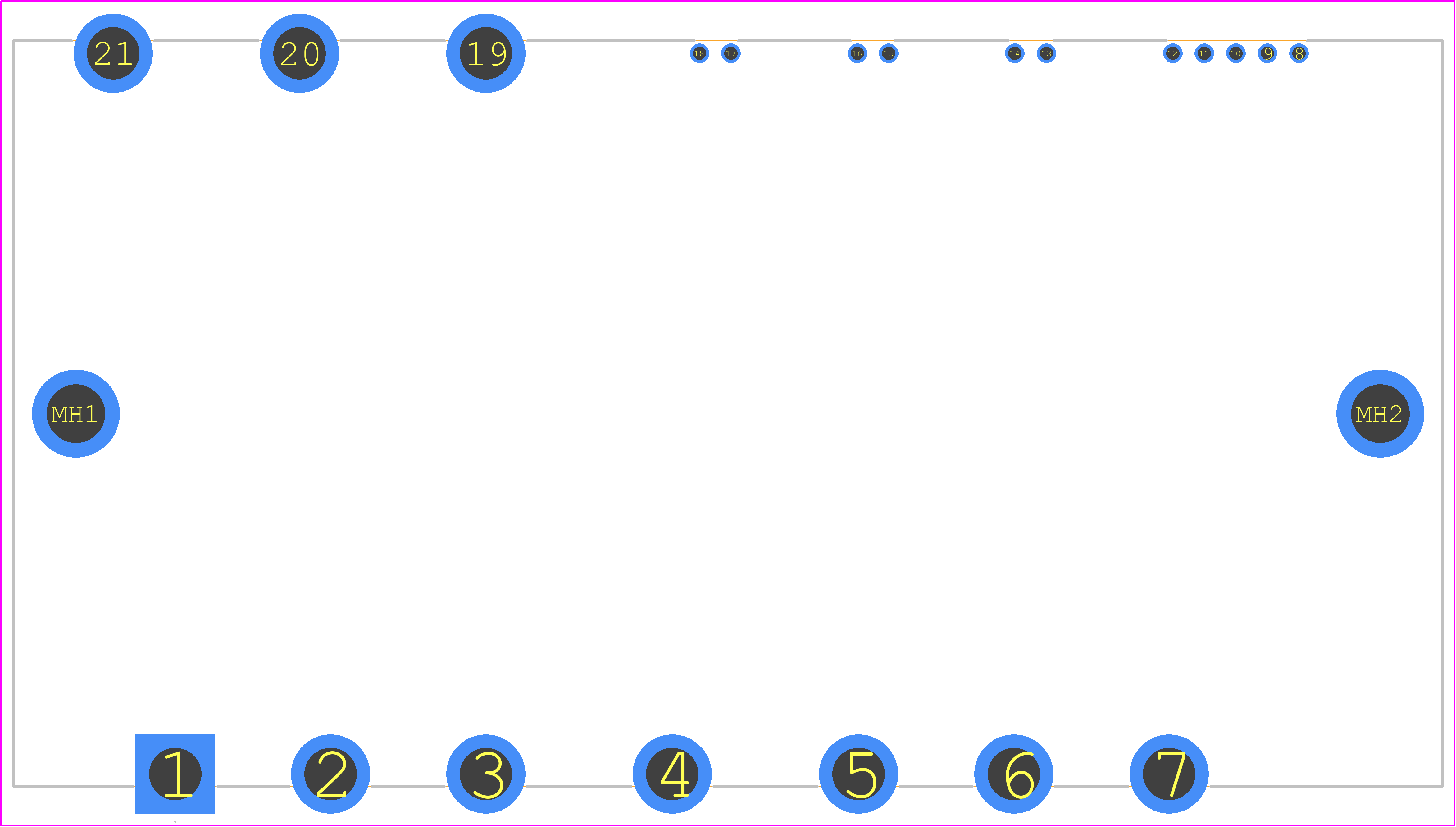

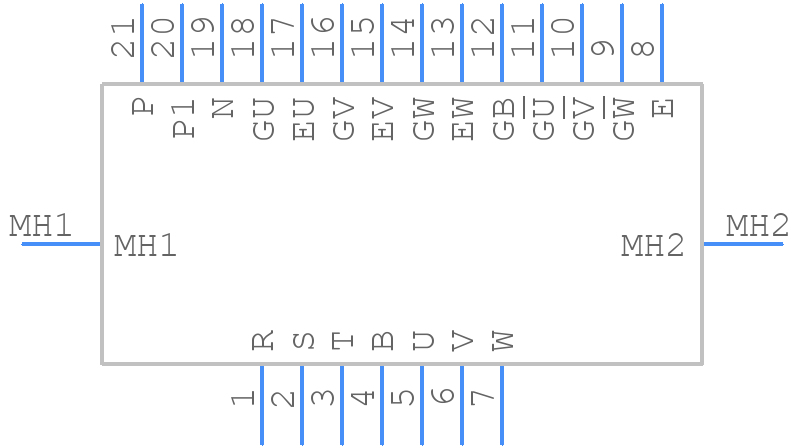

CM50MD1-12H Details

• Manufacturer Part Number:

  CM50MD1-12H

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• Manufacturer:

  Mitsubishi Electric

• YTEOL:

  0

• Case Connection:

  ISOLATED

• Collector Current-Max (IC):

  50 A

• Collector-Emitter Voltage-Max:

  600 V

• Configuration:

  BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THREE PHASE DIODE BRIDGE

• Gate-Emitter Voltage-Max:

  20 V

• JESD-30 Code:

  R-XUFM-X21

• Number of Elements:

  6

• Number of Terminals:

  21

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  UNSPECIFIED

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  104 W

• Qualification Status:

  Not Qualified

• Reference Standard:

  UL RECOGNIZED

• Surface Mount:

  NO

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  UPPER

• Transistor Application:

  MOTOR CONTROL

• Transistor Element Material:

  SILICON

• Turn-off Time-Nom (toff):

  500 ns

• Turn-on Time-Nom (ton):

  420 ns

• VCEsat-Max:

  2.8 V
