API Delevan recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K is suggested between the device and the heat sink.
The CM6296-105 requires a bias voltage of 12V to 15V, and a bias current of 100mA to 200mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly terminated to prevent oscillations.
The CM6296-105 is rated for a maximum power handling of 20W. However, this rating is dependent on the operating frequency, temperature, and other environmental factors. It's essential to perform thermal and power handling calculations to ensure the device is operated within its safe operating area.
Common issues can be troubleshooted by checking the PCB layout for proper grounding and decoupling, ensuring the bias circuit is stable, and verifying the device is properly terminated. Additionally, checking for signs of overheating, such as excessive temperature rise or thermal runaway, can help identify the root cause of the issue.
Yes, the CM6296-105 is a high-frequency device and requires proper EMI/EMC design considerations. Ensure the PCB layout is designed to minimize radiation and coupling, and that proper shielding and filtering are implemented to meet regulatory requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CM6296-105 Overview

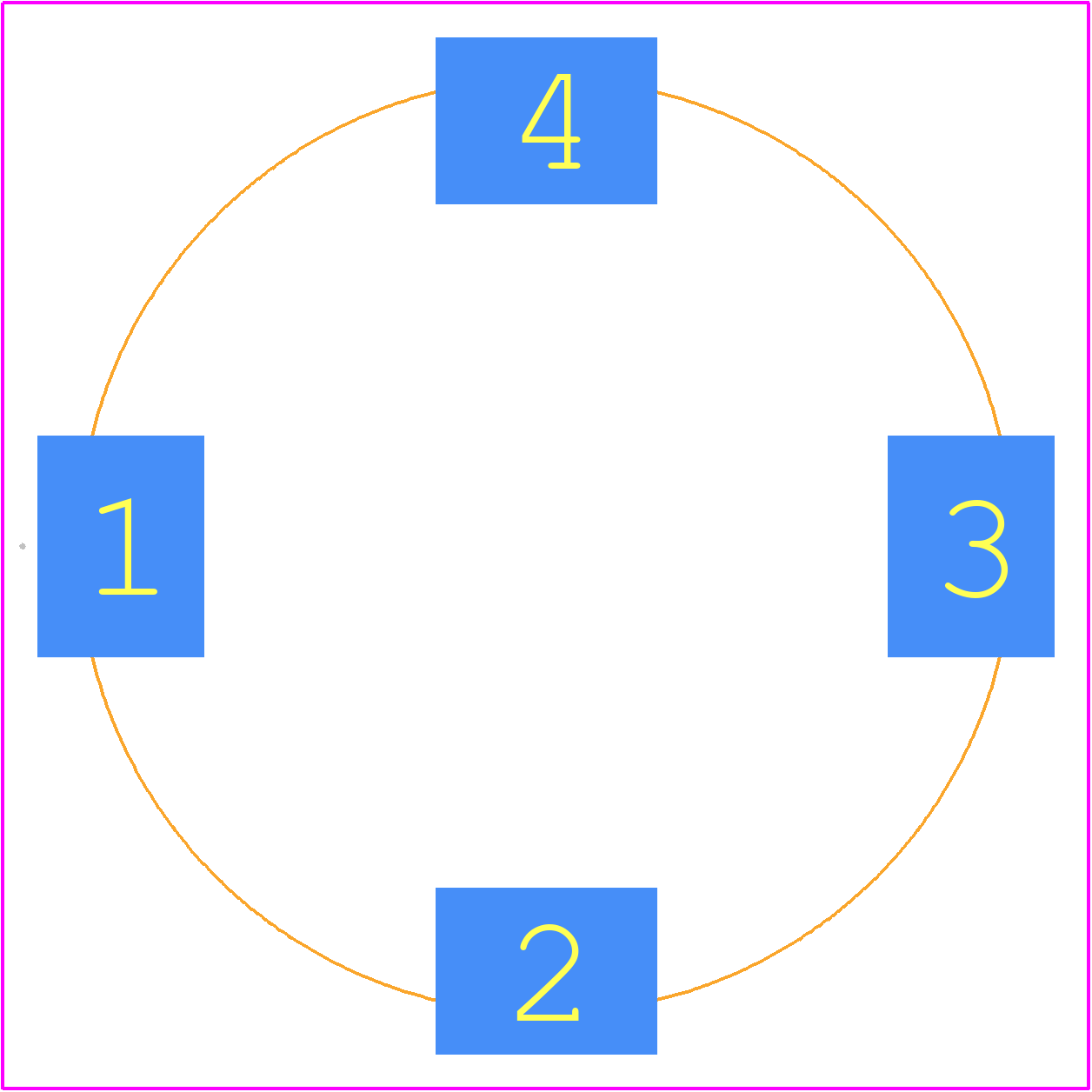

Use the download button to access the CM6296-105 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CM629,
or try a keyword search, such as Data Line Filters
