The recommended land pattern for the CMB02070X2202GB200 can be found in the Vishay Intertechnologies' Capacitor Land Pattern Recommendations document, which provides guidelines for PCB layout and pad design.
The Equivalent Series Resistance (ESR) of the CMB02070X2202GB200 can impact its performance in high-frequency circuits. A lower ESR can reduce energy losses and improve the capacitor's ability to filter high-frequency noise. However, the impact of ESR on performance depends on the specific application and circuit design.
The CMB02070X2202GB200 is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the capacitor's performance and lifespan may be affected by prolonged exposure to high temperatures, so careful consideration should be given to the specific application and operating conditions.
The voltage rating of the CMB02070X2202GB200 is 200V, which means it can withstand voltage spikes and surges up to 200V without compromising its performance or reliability. Operating the capacitor within its rated voltage range helps ensure its reliability and lifespan.
To prevent damage and ensure the capacitor's performance and reliability, it is recommended to store the CMB02070X2202GB200 in a cool, dry place, away from direct sunlight and moisture. Handling should be done with care to avoid mechanical stress, and electrostatic discharge (ESD) precautions should be taken to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMB02070X2202GB200 Overview

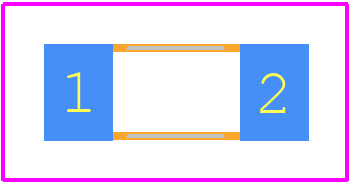

Use the download button to access the CMB02070X2202GB200 schematic symbol, PCB footprint, and 3D model.
