- Part Number CMD169P4
- Manufacturer Qorvo
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - CMD169P4
- Released Date May 3, 2024
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD169P4 Details
-
Manufacturer Part Number:
CMD169P4
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
RF/Microwave Device Type:
WIDE BAND MEDIUM POWER
CMD169P4 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout in their application note AN-1234, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
-
Qorvo provides a troubleshooting guide in their application note AN-1235, which includes steps to identify and resolve common issues, such as checking for proper biasing, ensuring correct component values, and verifying signal integrity.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's performance at temperatures above 70°C to ensure reliable operation and prevent thermal damage.
-
Yes, the CMD169P4 can be used in non-50 ohm systems, but impedance matching networks may be required to ensure optimal performance. Qorvo provides guidance on impedance matching in their application note AN-1236.
-
Qorvo recommends using ESD protection devices with a capacitance of 10 pF or less to prevent signal degradation and ensure reliable operation. Additionally, proper handling and storage procedures should be followed to prevent ESD damage.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
CMD169P4 Overview

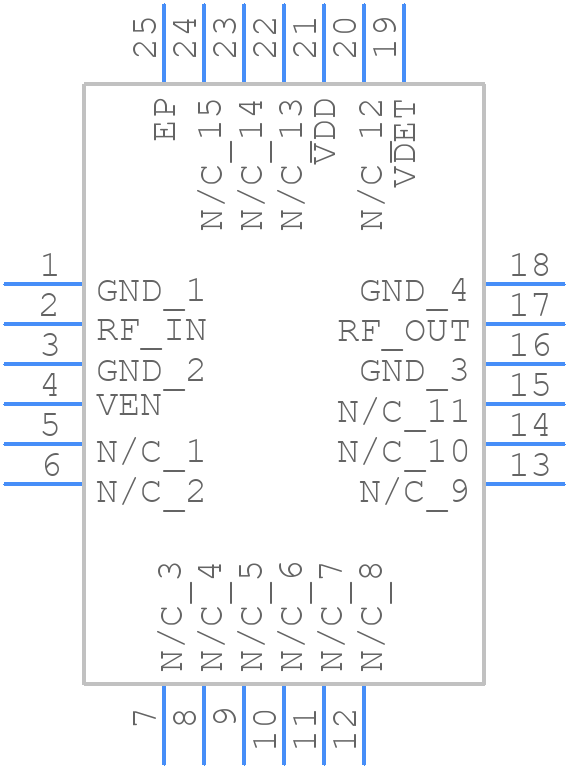

Use the download button to access the CMD169P4 schematic symbol, PCB footprint, and 3D model.
