A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the transmission lines. A via-stitched ground plane is also recommended to reduce electromagnetic interference (EMI).
The biasing of the CMD177C3 should be optimized for maximum linearity by adjusting the voltage and current bias points. A bias tee or a resistive divider can be used to set the bias voltage. The ideal bias point is typically around 1.5V to 2.5V, with a current of 10mA to 20mA.
The recommended input and output matching network for the CMD177C3 is a low-pass filter with a series inductor and a shunt capacitor. The values of the inductor and capacitor should be optimized for maximum power transfer and minimum reflection coefficient.
The noise figure of the CMD177C3 can be reduced by optimizing the biasing, using a low-noise amplifier, and minimizing the parasitic capacitance and inductance in the circuit. A noise-matching network can also be used to optimize the noise figure.
The maximum operating temperature of the CMD177C3 is 105°C. However, the device should be derated for temperatures above 85°C to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMD177C3 Overview

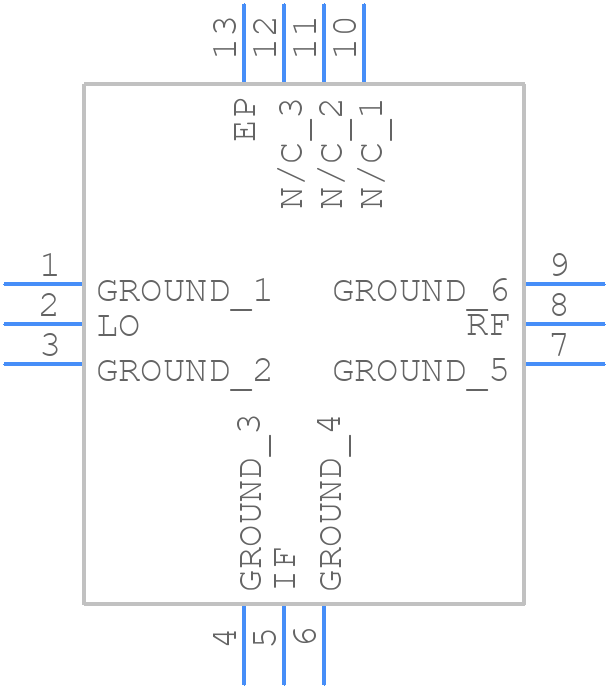

Use the download button to access the CMD177C3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD17,
or try a keyword search, such as RF/Microwave Mixers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
