- Part Number CMD178C3
- Manufacturer Qorvo
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - 12-Lead QFN 3x3
- Released Date Feb 24, 2025
- Last Modified Date Feb 24, 2025 4:25 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD178C3 Details
-
Manufacturer Part Number:
CMD178C3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7
-
Additional Feature:
HIGH ISOLATION
-
Characteristic Impedance:
50 Ω
CMD178C3 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the transmission lines. A via-stitched ground plane is also recommended to reduce electromagnetic interference (EMI).
-
The biasing of the CMD178C3 should be optimized for maximum linearity by adjusting the voltage and current bias points. A bias tee or a resistive divider can be used to set the bias voltage. The ideal bias point is typically around 1.5V to 2.5V, but this may vary depending on the specific application.
-
The recommended input and output matching network for the CMD178C3 consists of a low-pass filter (LPF) or a band-pass filter (BPF) to match the device's input and output impedance to the system's impedance. The specific component values will depend on the frequency range and impedance of the system.
-
To reduce the noise figure of the CMD178C3, ensure that the device is properly biased and that the input and output matching networks are optimized. Additionally, using a low-noise amplifier (LNA) or a low-noise voltage regulator (LNR) can help reduce the noise figure. Shielding the device and using a ground plane can also help reduce electromagnetic interference (EMI).
-
The maximum operating temperature of the CMD178C3 is 105°C. However, the device's performance may degrade at higher temperatures, and it is recommended to operate the device at a temperature below 85°C for optimal performance.
Trust Checks
Expert Contribution
System Verified
Community Approved
CMD178C3 Overview

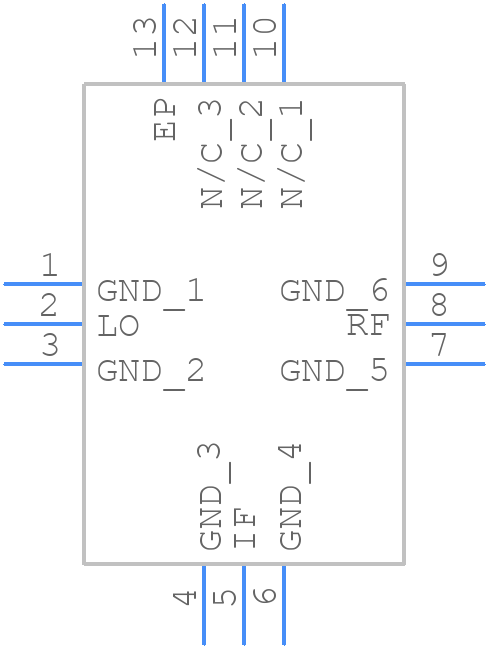

Use the download button to access the CMD178C3 schematic symbol, PCB footprint, and 3D model.
