- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CMD179C3
- Part Number CMD179C3
- Manufacturer Qorvo
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN-12_2024
- Released Date Dec 20, 2024
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD179C3 Details
-
Manufacturer Part Number:
CMD179C3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
8
-
RF/Microwave Device Type:
DOUBLE BALANCED
CMD179C3 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout guide in their application note AN-1149, which includes guidelines for component placement, routing, and grounding to ensure optimal performance.
-
The biasing circuit should be designed to provide a stable voltage supply to the device. Qorvo recommends using a low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR) to minimize noise and ensure stable operation.
-
The CMD179C3 is rated for operation up to a maximum junction temperature (Tj) of 150°C. However, it's recommended to operate the device at a lower temperature to ensure reliability and optimal performance.
-
Qorvo provides a troubleshooting guide in their application note AN-1149, which includes steps to identify and resolve common issues, such as oscillations, noise, and biasing problems.
-
Qorvo offers an evaluation board, the CMD179C3-EVB, which is designed to simplify the evaluation and testing of the CMD179C3. The board includes a PCB layout optimized for the device, as well as connectors for easy connection to test equipment.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
CMD179C3 Overview

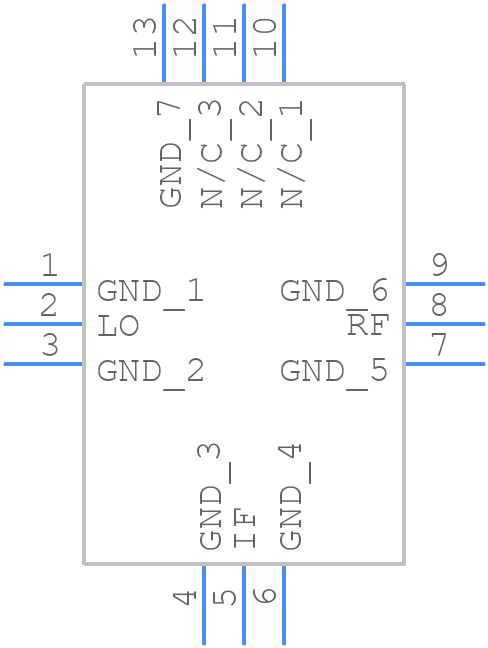

Use the download button to access the CMD179C3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD17,
or try a keyword search, such as RF/Microwave Mixers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
