CMD192C5 - Qorvo

Description: DC-20 GHz (L, S, C, X, Ku, K Band) Broad Range Distributed Amplifier MMIC

Download CMD192C5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

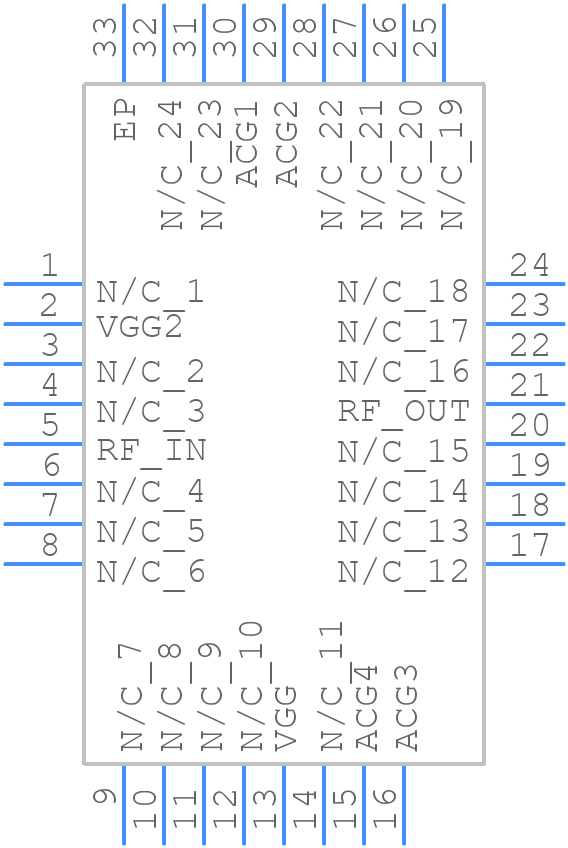

CMD192C5 - Qorvo - PCB symbol
click to zoom
PCB Footprints
CMD192C5 - Qorvo PCB footprint - Other - Other - CMD192C5-3
click to zoom
3D Models
CMD192C5 - Qorvo - 3D model - Other - CMD192C5-3
click to zoom

CMD192C5 Details

  • Manufacturer Part Number:

    CMD192C5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    7

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    17 dB

  • Input Power-Max (CW):

    23 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    20000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

CMD192C5 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the transmission lines. A via-stitched ground plane is also recommended to reduce electromagnetic interference (EMI).
  • The biasing of the CMD192C5 should be optimized for maximum gain and linearity. A bias tee or a DC block capacitor can be used to isolate the DC bias from the RF signal. The recommended bias voltage is 3.3V, and the current should be limited to 100mA to prevent overheating.
  • The CMD192C5 is designed to operate up to 40 GHz, but the maximum operating frequency may vary depending on the specific application and the quality of the PCB layout. It's recommended to characterize the device in the specific application to determine the maximum operating frequency.
  • The CMD192C5 is a high-power device that requires proper thermal management to prevent overheating. A heat sink or a thermal pad can be used to dissipate heat. The device should be mounted on a metal core PCB or a thermal clad PCB to improve heat dissipation.
  • The recommended input and output matching network for the CMD192C5 depends on the specific application and the frequency of operation. A pi-network or a T-network can be used for impedance matching. The matching network should be designed to provide a 50-ohm impedance match to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMD192C5 Overview

Use the download button to access the CMD192C5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD19, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
