CMD204C3 - Qorvo

Description: DC-20 GHz (L, S, C, X, Ku, K Band) SPST Non-reflective Switch MMIC

Download CMD204C3 Model

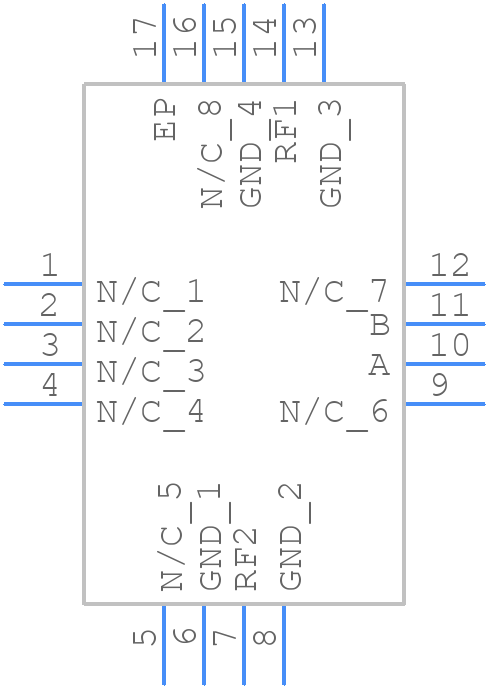

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CMD204C3 - Qorvo PCB footprint - Other - Other - Plastic QFN 3x3 mm x 16 leads
click to zoom
3D Models
CMD204C3 - Qorvo  - 3D model - Other - Plastic QFN 3x3 mm x 16 leads
click to zoom

CMD204C3 Details

  • Manufacturer Part Number:

    CMD204C3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    7.6

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • Insertion Loss-Max:

    2 dB

  • Isolation-Min:

    35 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.018 µs

  • Operating Frequency-Max:

    20000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.1SQ,20

  • Power Supplies:

    0/-5 V

  • RF/Microwave Device Type:

    SPST

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    1.22
