CMD227C3 - Qorvo

Description: 8-15 GHz (X, Ku Band) Passive Frequency Doubler

Download CMD227C3 Model

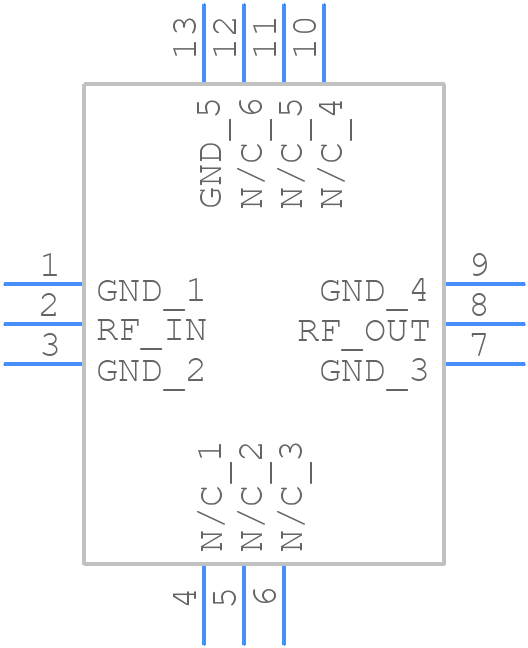

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CMD227C3 - Qorvo PCB footprint - Other - Other - 12-Lead QFN 3mm x 3mm_2024-1
click to zoom
3D Models
CMD227C3 - Qorvo  - 3D model - Other - 12-Lead QFN 3mm x 3mm_2024-1
click to zoom

CMD227C3 Details

  • Manufacturer Part Number:

    CMD227C3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • JESD-609 Code:

    e4

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMD227C3 Overview

Use the download button to access the CMD227C3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD22, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
