- Part Number CMD233C4
- Manufacturer Qorvo
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - Ceramic QFN 4x4 mm x 24 leads
- Released Date Feb 24, 2025
- Last Modified Date Feb 24, 2025 5:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD233C4 Details
-
Manufacturer Part Number:
CMD233C4
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
JESD-609 Code:
e4
-
RF/Microwave Device Type:
WIDE BAND LOW POWER
-
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
CMD233C4 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guidelines in their application note AN-1234. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications.
-
The biasing circuit should be designed to provide a stable voltage supply to the device. Qorvo recommends using a low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR) to minimize noise and ensure stable operation. Additionally, a 10nF capacitor should be placed close to the device's VDD pin to filter out high-frequency noise.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power dissipation above 70°C to ensure reliable operation. It's essential to consider the thermal management and heat dissipation in the system design to prevent overheating.
-
Qorvo provides a troubleshooting guide in their application note AN-1235, which covers common issues and their solutions. Additionally, it's essential to verify the PCB layout, component selection, and biasing circuit design to ensure they meet the recommended specifications.
-
Yes, the CMD233C4 is a sensitive device and requires proper ESD protection measures during handling, assembly, and testing. Qorvo recommends following the ESD protection guidelines outlined in their application note AN-1236, which includes the use of ESD-safe materials, wrist straps, and ionizers.
Trust Checks
Expert Contribution
System Verified
Community Approved
CMD233C4 Overview

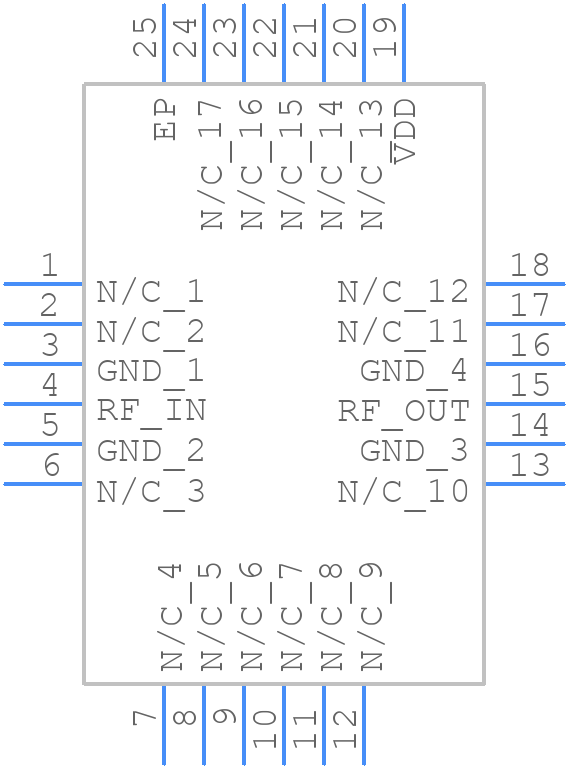

Use the download button to access the CMD233C4 schematic symbol, PCB footprint, and 3D model.
