Qorvo provides a recommended PCB layout and thermal management guidelines in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and to prevent overheating.
Qorvo offers a range of application notes and design guides that provide guidance on biasing and tuning the CMD234C4 for specific applications. Additionally, Qorvo's simulation models and design tools can help engineers optimize the design for their specific use case.
Qorvo performs a range of reliability and qualification tests on the CMD234C4, including temperature cycling, humidity testing, and electrical stress testing. These tests ensure that the device meets the required standards for reliability and performance. The specific tests and results are typically available upon request from Qorvo.
Qorvo provides guidance on EMC and EMI compliance in their application notes and design guides. Engineers should follow best practices for PCB layout, shielding, and filtering to ensure compliance with relevant EMC and EMI standards.
The CMD234C4 is available in a range of package options, including QFN and die forms. Lead times may vary depending on the specific package option and quantity required. Engineers should contact Qorvo or their authorized distributors for the latest information on package options and lead times.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMD234C4 Overview

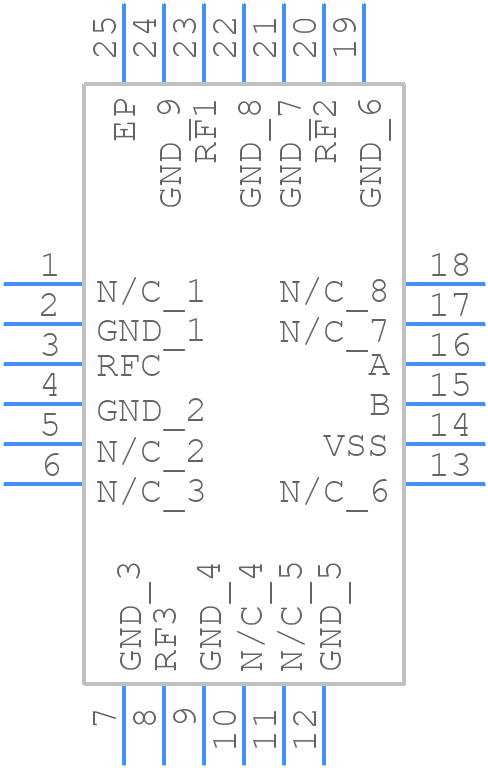

Use the download button to access the CMD234C4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD23,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
