CMD235C4 - Qorvo

Description: DC-18 GHz (L, S, C, X, Ku Band) SP5T Non-reflective Switch MMIC

Download CMD235C4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

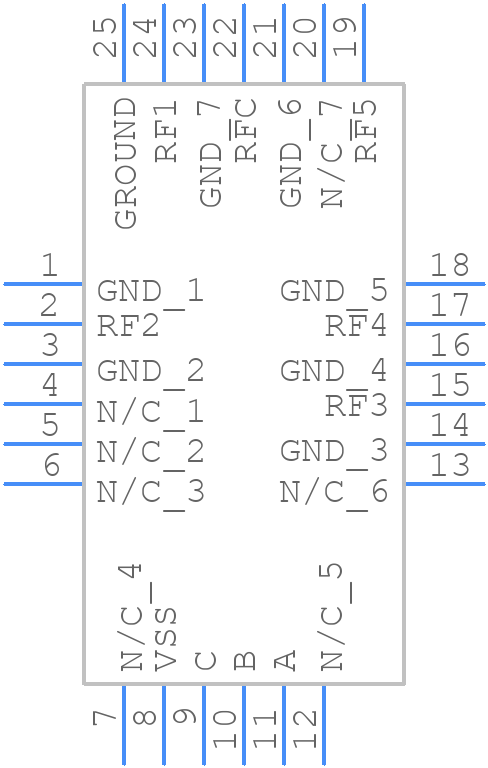

Symbol
CMD235C4 - Qorvo - PCB symbol
click to zoom
PCB Footprints
CMD235C4 - Qorvo PCB footprint - Other - Other - Ceramic QFN 4x4 mm x 24 leads
click to zoom
3D Models
CMD235C4 - Qorvo - 3D model - Other - Ceramic QFN 4x4 mm x 24 leads
click to zoom

CMD235C4 Details

  • Manufacturer Part Number:

    CMD235C4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    9030.82.00.00

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • JESD-609 Code:

    e4

  • RF/Microwave Device Type:

    SP5T

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMD235C4 Overview

Use the download button to access the CMD235C4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD23, or try a keyword search, such as RF/Microwave Switches

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
