CMD240C4 - Qorvo

Description: RF Amplifier IC General Purpose 0Hz ~ 22GHz 24-SMT (3.9x3.9)

Download CMD240C4 Model

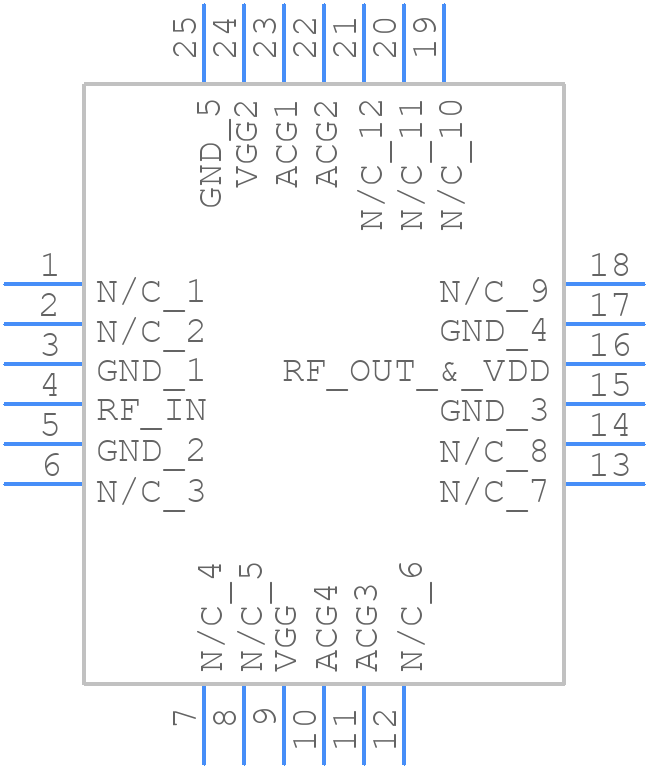

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CMD240C4 - Qorvo PCB footprint - Other - Other - Ceramic QFN 4x4 mm x 24 leads
click to zoom
3D Models
CMD240C4 - Qorvo  - 3D model - Other - Ceramic QFN 4x4 mm x 24 leads
click to zoom

CMD240C4 Details

  • Manufacturer Part Number:

    CMD240C4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    12 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    22000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    105 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

CMD240C4 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the transmission lines. A via-stitched ground plane is also recommended to reduce electromagnetic radiation.
  • The biasing of the CMD240C4 should be optimized for maximum linearity by adjusting the voltage and current bias points. A bias tee or a resistive divider can be used to set the bias voltage. The ideal bias point is typically around 1.5V to 2.5V, but this may vary depending on the specific application.
  • The CMD240C4 is designed to operate up to 40 GHz, but the maximum operating frequency may vary depending on the specific application and the quality of the PCB layout. In general, it is recommended to operate the device at frequencies below 30 GHz for optimal performance.
  • The CMD240C4 is a high-power device and requires proper thermal management to prevent overheating. A heat sink or a thermal pad can be used to dissipate heat. The device should be mounted on a metal plate or a heat sink with a thermal interface material to ensure good thermal conductivity.
  • The input and output matching of the CMD240C4 should be optimized for maximum power transfer and minimum reflections. A 50-ohm microstrip line or a coplanar waveguide can be used for input and output matching. The matching network should be designed to provide a good impedance match over the frequency range of interest.
