Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and to prevent overheating.
The biasing circuit should be designed to provide a stable voltage supply and minimize noise. Qorvo recommends using a low-dropout regulator (LDO) and a decoupling capacitor network to ensure a clean and stable voltage supply. Refer to the application note AN-1235 for more details.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power dissipation above 70°C to ensure reliable operation and prevent thermal runaway.
Qorvo provides a troubleshooting guide in their application note AN-1236, which covers common issues and their solutions. Additionally, it's essential to verify the PCB layout, biasing circuit, and thermal management to ensure they meet the recommended guidelines.
Yes, the CMD244K5 is a sensitive device and requires proper ESD protection during handling, assembly, and testing. Qorvo recommends following the ESD protection guidelines outlined in their application note AN-1237 to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMD244K5 Overview

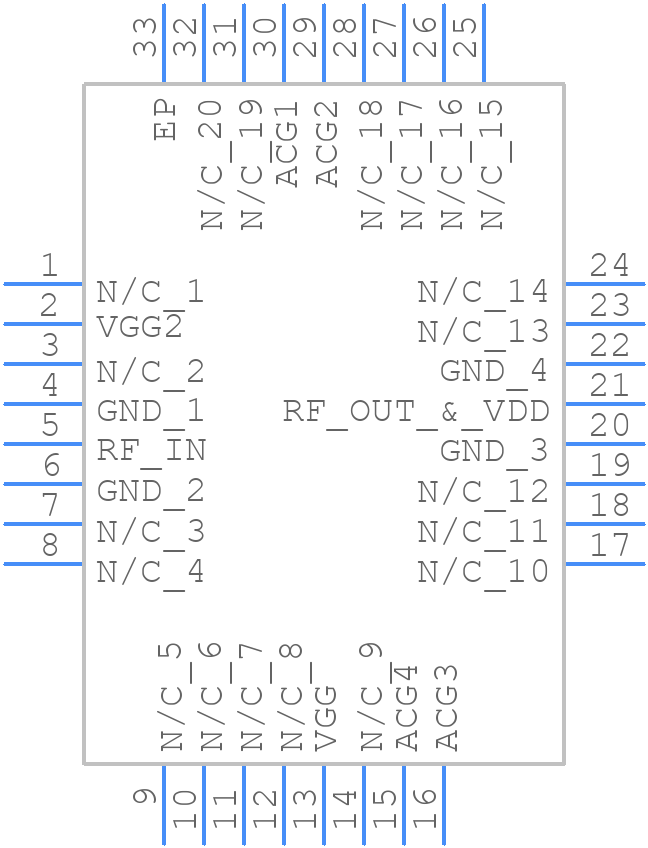

Use the download button to access the CMD244K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD24,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
