Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-1234, which includes guidelines for thermal vias, heat sinks, and PCB material selection to ensure optimal performance and reliability.
The biasing circuit should be designed to provide a stable voltage supply to the device, with a recommended voltage range of 3.3V to 5V. A decoupling capacitor of 100nF to 1uF should be placed close to the device, and a series resistor of 10-20 ohms can be used to limit the current. Additionally, a voltage regulator or a low-dropout regulator (LDO) can be used to regulate the voltage supply.
The CMD246C4 is rated for operation from -40°C to +85°C, but it's recommended to derate the power dissipation above 70°C to ensure reliability and prevent thermal runaway.
Common issues with the CMD246C4 can be troubleshooted by checking the PCB layout for proper grounding and decoupling, ensuring the biasing circuit is stable and within the recommended range, and verifying that the input and output impedances are matched. Additionally, Qorvo provides a troubleshooting guide in their application note AN-1235, which includes steps to identify and resolve common issues.
The CMD246C4 is a sensitive device and requires proper ESD protection to prevent damage. Qorvo recommends using a diode array or a TVS (transient voltage suppressor) device with a voltage rating of 5V or higher, and a capacitance of 100pF to 1nF, placed close to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMD246C4 Overview

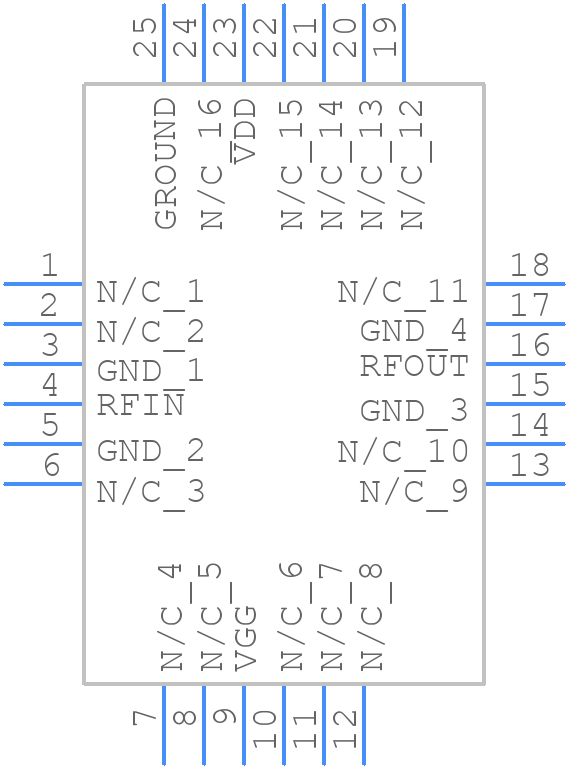

Use the download button to access the CMD246C4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD24,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
