- Part Number CMD252C4
- Manufacturer Qorvo
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - Ceramic QFN 4x4 mm x 24 leads
- Released Date Feb 24, 2025
- Last Modified Date Feb 24, 2025 5:38 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD252C4 Details
-
Manufacturer Part Number:
CMD252C4
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7
-
JESD-609 Code:
e4
-
RF/Microwave Device Type:
DOUBLE BALANCED
-
Terminal Finish:
NICKEL PALLADIUM GOLD
CMD252C4 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout in the datasheet, but it's essential to note that the layout should be symmetrical and have a solid ground plane to minimize noise and ensure optimal performance.
-
The biasing circuit should be designed to provide a stable voltage supply to the device. A voltage regulator with a low dropout voltage and low noise is recommended. Additionally, the biasing circuit should be decoupled from the power supply lines using capacitors and resistors to minimize noise and ensure stable operation.
-
The maximum operating temperature for the CMD252C4 is 105°C, but it's essential to note that the device's performance may degrade at higher temperatures. It's recommended to operate the device within the recommended temperature range for optimal performance and to ensure reliability.
-
To troubleshoot issues with the CMD252C4, it's essential to follow a systematic approach. Start by verifying the power supply voltage and current, then check the input and output signals using an oscilloscope or spectrum analyzer. Also, ensure that the PCB layout and biasing circuit are correct and follow the recommended design guidelines.
-
The recommended input and output matching network for the CMD252C4 depends on the specific application and frequency range. Qorvo provides a recommended matching network in the datasheet, but it's essential to optimize the matching network for the specific application using simulation tools and measurement equipment.
Trust Checks
Expert Contribution
System Verified
Community Approved
CMD252C4 Overview

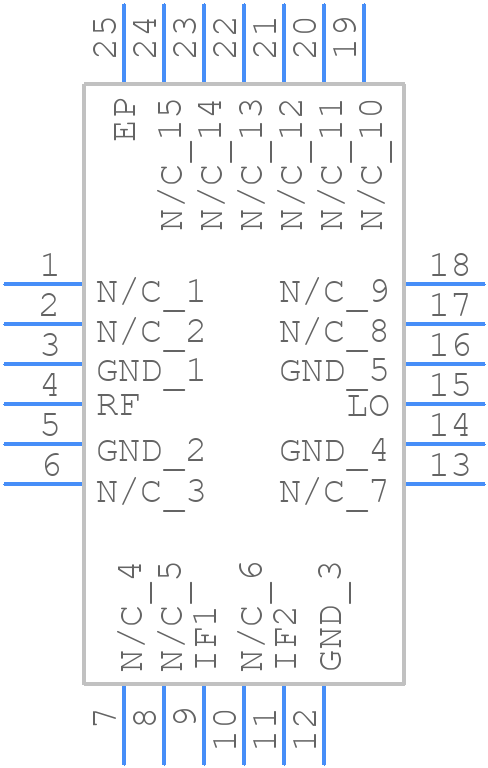

Use the download button to access the CMD252C4 schematic symbol, PCB footprint, and 3D model.
