- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CMD271P3
- Part Number CMD271P3
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - CMD271P3
- Released Date Jul 11, 2021
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD271P3 Details
-
Manufacturer Part Number:
CMD271P3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-16
-
ECCN Code:
EAR99
-
Factory Lead Time:
24 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7.27
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
15.5 dB
CMD271P3 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the transmission lines. A via-stitched ground plane is also recommended to reduce electromagnetic interference (EMI).
-
The biasing of the CMD271P3 should be optimized for maximum linearity by adjusting the voltage and current bias points. A bias tee or a resistive divider can be used to set the bias voltage. The ideal bias point is typically around 1.5V to 2.5V, with a current of 10mA to 20mA.
-
The CMD271P3 has a high power density, so thermal management is critical. A heat sink or thermal pad should be used to dissipate heat. The device should be mounted on a metal core PCB or a thermal via-based PCB to improve heat dissipation. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink.
-
To minimize EMI, the CMD271P3 should be placed in a shielded enclosure or a metal cavity. The PCB should be designed with EMI in mind, using techniques such as via-stitching, grounding, and shielding. Additionally, the device should be placed away from other noise-sensitive components, and the power supply should be filtered to reduce noise.
-
The CMD271P3 should be tested and validated using a combination of DC and RF tests. DC tests should include voltage and current measurements, while RF tests should include gain, noise figure, and return loss measurements. The device should be tested in a controlled environment, using a calibrated test setup and a vector network analyzer (VNA).
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
CMD271P3 Overview

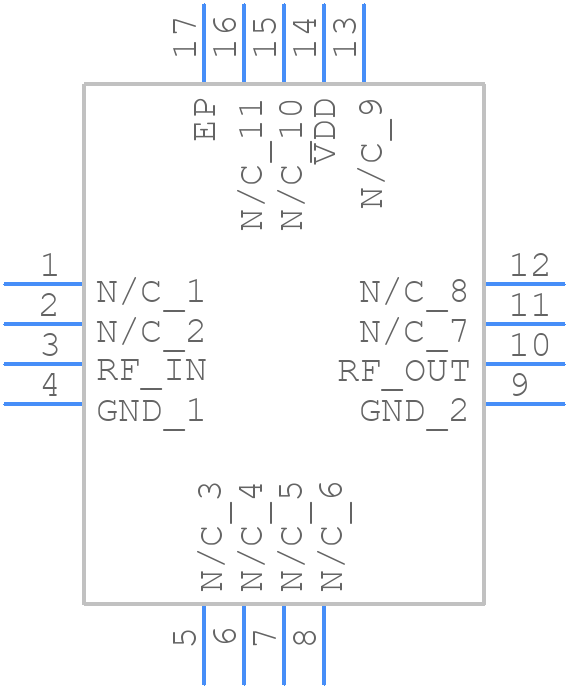

Use the download button to access the CMD271P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD27,
or try a keyword search, such as RF/Microwave Amplifiers
