CMD283C3 - Qorvo

Description: 2-6 GHz (C Band) Ultra Low Noise Amplifier

Download CMD283C3 Model

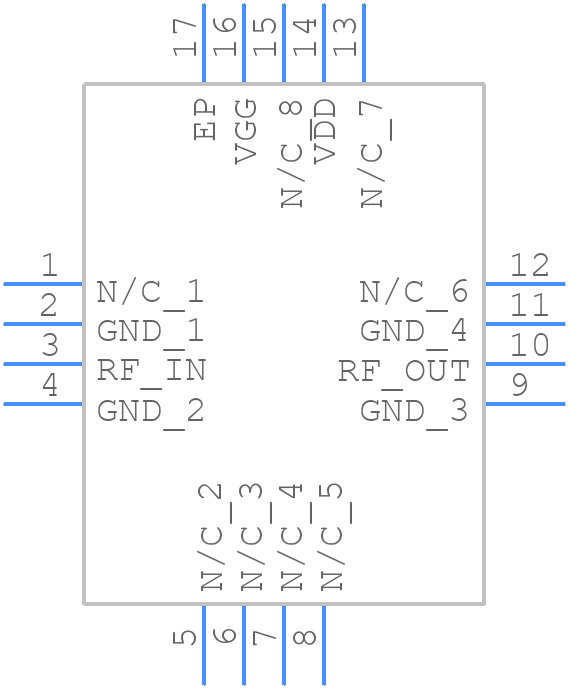

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CMD283C3 - Qorvo PCB footprint - Other - Other - Ceramic QFN 3x3 mm x 16
click to zoom
3D Models
CMD283C3 - Qorvo  - 3D model - Other - Ceramic QFN 3x3 mm x 16
click to zoom

CMD283C3 Details

  • Manufacturer Part Number:

    CMD283C3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.83

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    2000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

CMD283C3 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the RF traces should be kept short and away from digital lines.
  • The biasing of the device should be optimized for maximum linearity by adjusting the voltage and current levels to achieve the desired output power and linearity. A bias tee can be used to provide a stable DC bias voltage.
  • A heat sink or thermal pad should be used to dissipate heat from the device. The thermal pad should be connected to a solid ground plane to ensure good thermal conductivity.
  • Common issues can be troubleshooted by checking the biasing, impedance matching, and RF signal quality. A spectrum analyzer can be used to measure the output power and distortion, and a network analyzer can be used to measure the impedance matching.
  • The input and output matching networks should be designed to provide a conjugate match to the device's input and output impedances. A pi-network or a T-network can be used for impedance matching.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMD283C3 Overview

Use the download button to access the CMD283C3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD28, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
