CMD291P4 - Qorvo

Description: 16-24 GHz (Ku and K-band) Driver Amplifier

Download CMD291P4 Model

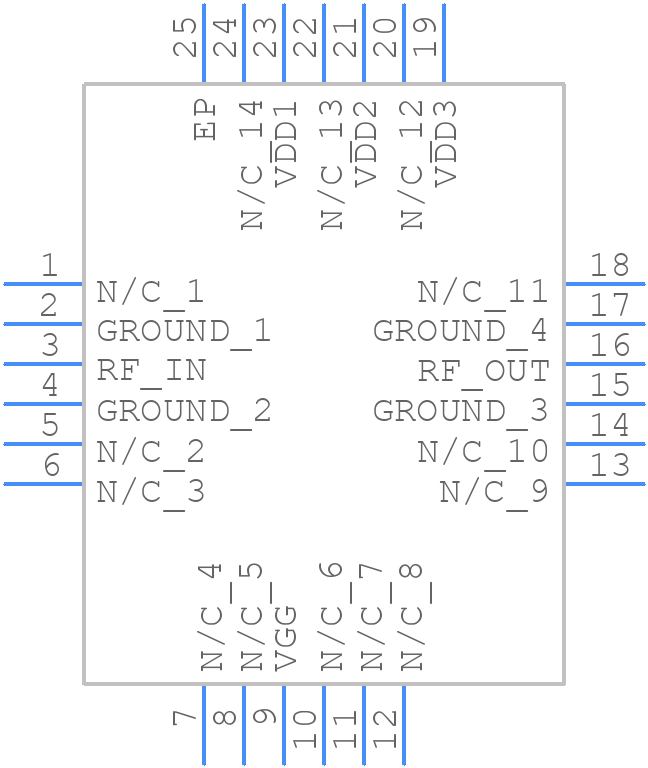

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CMD291P4 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-VFQFN
click to zoom
3D Models
CMD291P4 - Qorvo  - 3D model - Quad Flat No-Lead - 24-VFQFN
click to zoom

CMD291P4 Details

  • Manufacturer Part Number:

    CMD291P4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    7.56

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    22 dB

  • Input Power-Max (CW):

    18 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    24000 MHz

  • Operating Frequency-Min:

    16000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    325 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    MATTE TIN

  • VSWR-Max:

    1.58

CMD291P4 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the distance to the antenna. A 50-ohm microstrip line should be used to connect the device to the antenna.
  • The optimal bias point for maximum power efficiency is typically around 3.5V to 4.5V. The bias current should be set to around 200-300 mA. The device should be operated in a Class-AB mode to achieve the best trade-off between power efficiency and linearity.
  • A low-pass matching network with a series inductor and a shunt capacitor is recommended for input matching. For output matching, a high-pass matching network with a series capacitor and a shunt inductor is recommended. The values of the components should be optimized for the specific frequency band of operation.
  • To ensure stability, the device should be operated within the recommended operating conditions. The input and output impedances should be matched to 50 ohms. The device should be decoupled from the power supply using a 10-100 nF capacitor. The PCB layout should be designed to minimize parasitic inductance and capacitance.
  • The maximum safe operating temperature for the CMD291P4 is 150°C. The device should be operated within the recommended temperature range to ensure reliable operation and to prevent thermal damage.
