CMD297P34 - Qorvo

Description: 5-18 GHz Analog Phase Shifter

Download CMD297P34 Model

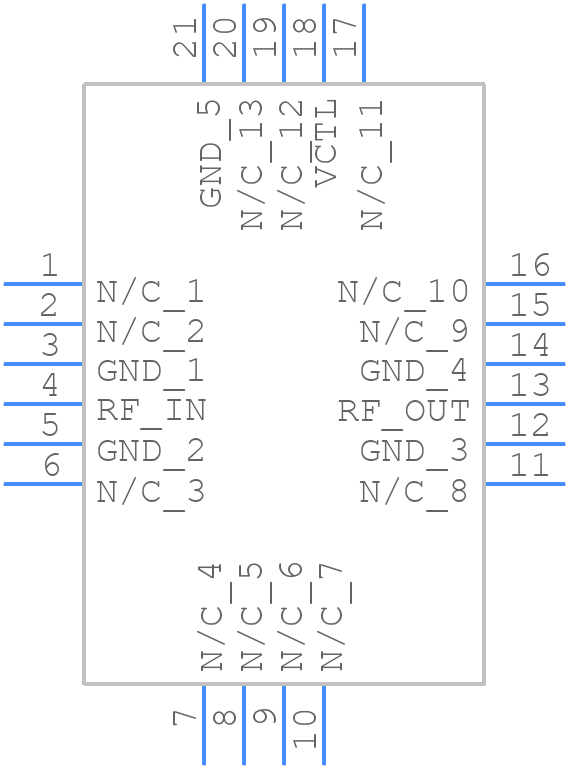

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CMD297P34 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3x4 QFN package
click to zoom
3D Models
CMD297P34 - Qorvo  - 3D model - Quad Flat No-Lead - 3x4 QFN package
click to zoom

CMD297P34 Details

  • Manufacturer Part Number:

    CMD297P34

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • ECCN Code:

    EAR99

  • HTS Code:

    9030.82.00.00

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Qorvo

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    17 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    20

  • Operating Frequency-Max:

    18000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC20,.12X.16,20

  • Phase Shift-Min:

    45 deg

  • RF/Microwave Device Type:

    PHASE SHIFTER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.58
