- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for CMD299K4
- Part Number CMD299K4
- Manufacturer Qorvo
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - CMD299K4
- Released Date Jun 12, 2021
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
CMD299K4 Details
-
Manufacturer Part Number:
CMD299K4
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
3A001.B.2.D
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7.85
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
10 dB
-
Input Power-Max (CW):
20 dBm
CMD299K4 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use a thermal pad or heat sink to maintain a junction temperature below 150°C.
-
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a pi-network or a T-network topology, and adjust the component values to achieve the desired impedance match.
-
Apply a voltage of 3.3-5V to the VDD pin, and use a current-limiting resistor to set the desired bias current. Tune the device using a variable capacitor or a tuning screw to achieve the desired frequency and impedance match.
-
Monitor the device's junction temperature, voltage, and current to ensure they remain within the specified limits. Use a thermal sensor or a thermocouple to monitor the junction temperature, and implement over-temperature protection if necessary.
-
Handle the device with ESD-protective equipment and follow proper ESD handling procedures. Use an ESD wrist strap or mat, and ensure the device is stored in an ESD-protective package when not in use.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
CMD299K4 Overview

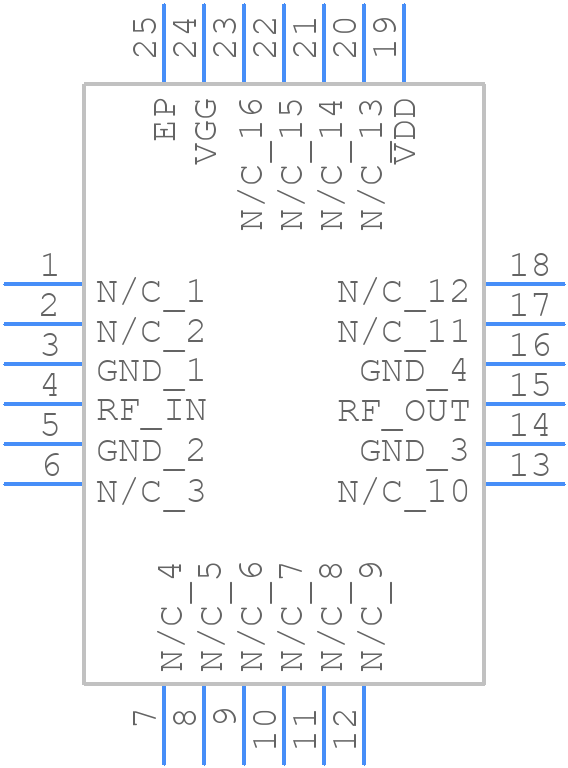

Use the download button to access the CMD299K4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMD29,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
