- Part Number CMD316C3
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - Ceramic QFN 3x3 mm x 16
- Released Date Feb 25, 2025
- Last Modified Date Feb 25, 2025 10:18 AM UTC
- Pinout / Pin List Click Here (Member Only)
CMD316C3 Details
-
Manufacturer Part Number:
CMD316C3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
7
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
15 dB
-
Input Power-Max (CW):
20 dBm
CMD316C3 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the transmission lines. A via-stitched ground plane is also recommended to reduce electromagnetic interference (EMI).
-
The biasing of the CMD316C3 should be optimized for maximum linearity by adjusting the voltage and current bias points. A bias tee or a resistive divider can be used to set the bias voltage. The ideal bias point is typically around 1.5V to 2.5V, with a current of 10mA to 20mA.
-
The recommended input and output matching network for the CMD316C3 consists of a low-pass filter with a series inductor and a shunt capacitor. The values of the inductor and capacitor should be optimized for maximum power transfer and minimum reflection coefficient.
-
The noise figure of the CMD316C3 can be reduced by optimizing the biasing, using a low-noise amplifier, and minimizing the parasitic capacitance and inductance in the circuit. A noise-matching network can also be used to optimize the noise figure.
-
The maximum operating temperature of the CMD316C3 is 105°C. However, the device should be derated for temperatures above 85°C to ensure reliable operation.
Trust Checks
Expert Contribution
System Verified
Community Approved
CMD316C3 Overview

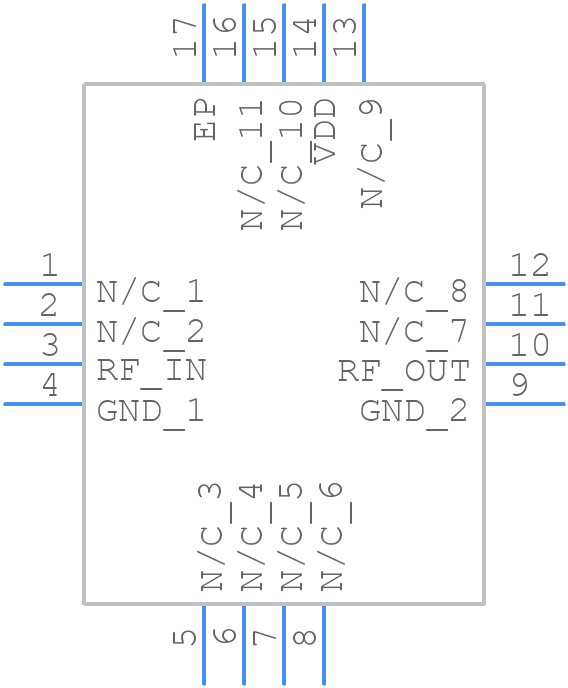

Use the download button to access the CMD316C3 schematic symbol, PCB footprint, and 3D model.
