- Part Number CMD319C3
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - Ceramic QFN 3x3 mm x 16
- Released Date Feb 25, 2025
- Last Modified Date Feb 25, 2025 10:38 AM UTC
- Pinout / Pin List Click Here (Member Only)
CMD319C3 Details
-
Manufacturer Part Number:
CMD319C3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-16
-
ECCN Code:
EAR99
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
8
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
16 dB
CMD319C3 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use a thermal pad or heat sink for high-power applications.
-
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a 50-ohm system impedance and tuning the networks for maximum gain and efficiency at the desired frequency.
-
Operate the device within the recommended temperature range (-40°C to 85°C) and voltage range (4.5V to 5.5V). Ensure proper thermal management and avoid exceeding the maximum junction temperature (150°C).
-
Use a shielded enclosure, ensure proper grounding, and implement EMI filtering on the input and output lines. Follow Qorvo's recommended PCB layout and design guidelines for EMI reduction.
-
The CMD319C3 is commonly used in wireless infrastructure, satellite communications, and radar systems. It's suitable for applications requiring high power, high gain, and low noise figure, such as amplifiers, transceivers, and front-end modules.
Trust Checks
Expert Contribution
System Verified
Community Approved
CMD319C3 Overview

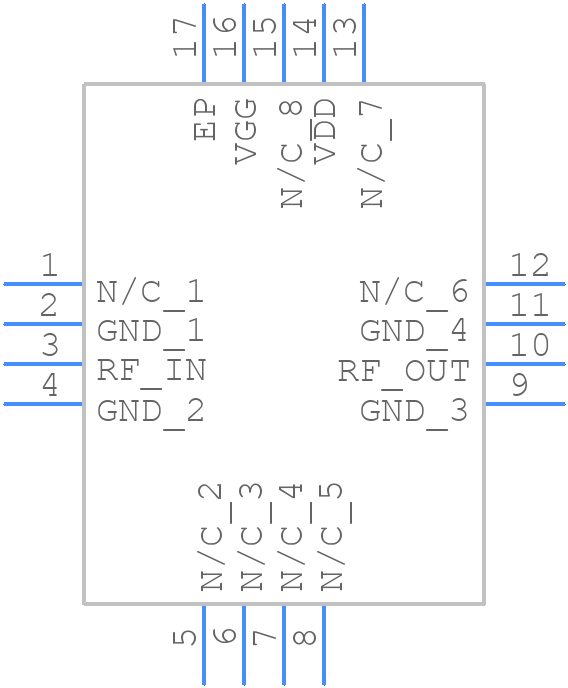

Use the download button to access the CMD319C3 schematic symbol, PCB footprint, and 3D model.
