MACOM provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The CMM0511-QT-0G00 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. A thermal via array can be used to dissipate heat to the opposite side of the board. Additionally, a heat sink or thermal interface material can be used to further improve thermal management.
MACOM recommends a soldering process with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. A nitrogen atmosphere is also recommended to minimize oxidation. It's essential to follow the recommended soldering process to prevent damage to the device.
Common issues with the CMM0511-QT-0G00 can often be attributed to improper PCB layout, poor soldering, or incorrect biasing. MACOM provides a troubleshooting guide in their application note AN-2171, which can help identify and resolve common issues.
The recommended biasing and tuning procedure for the CMM0511-QT-0G00 involves setting the gate voltage (Vg) to around -0.5V to -1.5V, and the drain voltage (Vd) to around 5V to 10V. The device should be tuned for optimal performance using a network analyzer or spectrum analyzer. MACOM provides a detailed biasing and tuning procedure in their application note AN-2171.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMM0511-QT-0G00 Overview

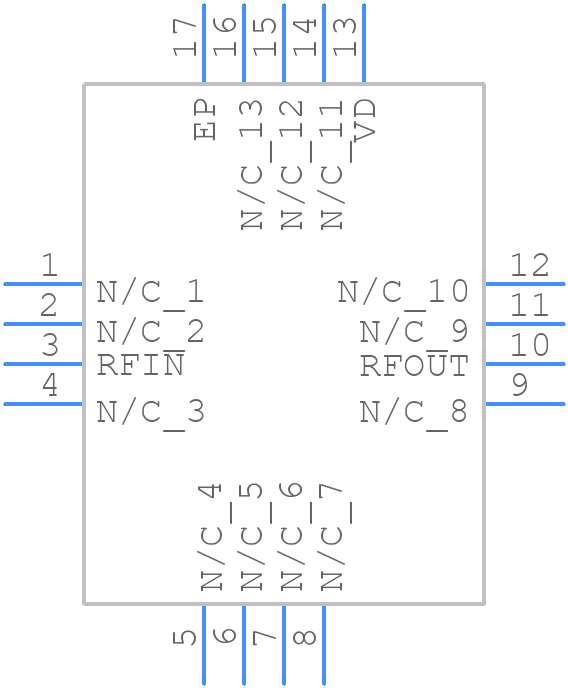

Use the download button to access the CMM0511-QT-0G00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMM05,
or try a keyword search, such as RF/Microwave Amplifiers
