Part Image

CMP82C55AZ - Renesas Electronics

Description: The Renesas 82C55A is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). The MX82C55A has identical features as the X82C55 with the exception of no bus hold devices on the port pins. It is a general purpose programmable I/O device which may be used with many different microprocessors. There are 24 I/O pins which may be individually programmed in two groups of 12 and used in three major modes of operation. The hi

Download CMP82C55AZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

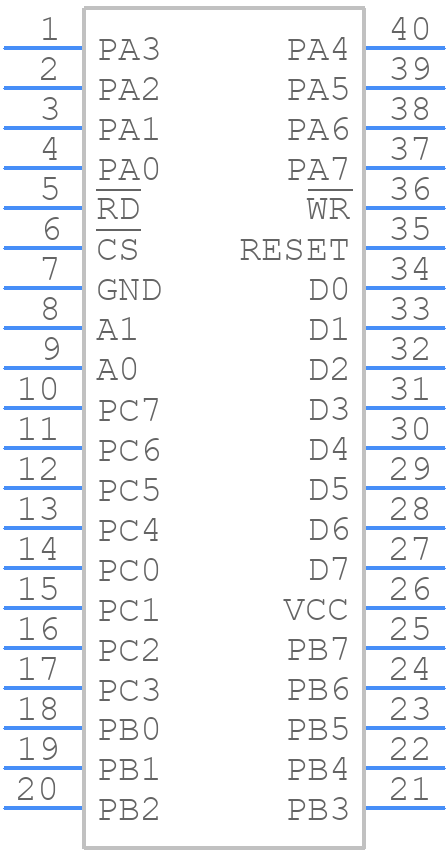

CMP82C55AZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
CMP82C55AZ - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E40.6_--
click to zoom
3D Models
CMP82C55AZ - Renesas Electronics - 3D model - Dual-In-Line Packages - E40.6_--
click to zoom

CMP82C55AZ Details

  • Manufacturer Part Number:

    CMP82C55AZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP

  • Pin Count:

    40

  • Manufacturer Package Code:

    E40.6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, PRINTER INTERFACE

CMP82C55AZ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CMP82C55AZ is 4.5V to 5.5V.
  • The chip select signal (CS) is active low, and it should be connected to a logic low level to enable the device. The CS signal should be tied to VCC or a logic high level to disable the device.
  • The maximum clock frequency supported by the CMP82C55AZ is 24 MHz.
  • The HOLD signal is used to pause the current operation and allow another master to access the bus. When the HOLD signal is asserted, the CMP82C55AZ will release the bus and enter a low-power state.
  • The RDY/BSY signal indicates the busy status of the device. When the signal is low, the device is busy and cannot accept new commands. When the signal is high, the device is ready to accept new commands.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMP82C55AZ Overview

Use the download button to access the CMP82C55AZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMP82, or try a keyword search, such as Parallel IO Ports
