CMT1-15.0-1L - COILCRAFT

Description: Common mode choke, toroid, 160.4 kOhms @ 0.16 MHz, 15 mH, DCR max2(Ohms) 0.430, RoHS

Download CMT1-15.0-1L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
CMT1-15.0-1L - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

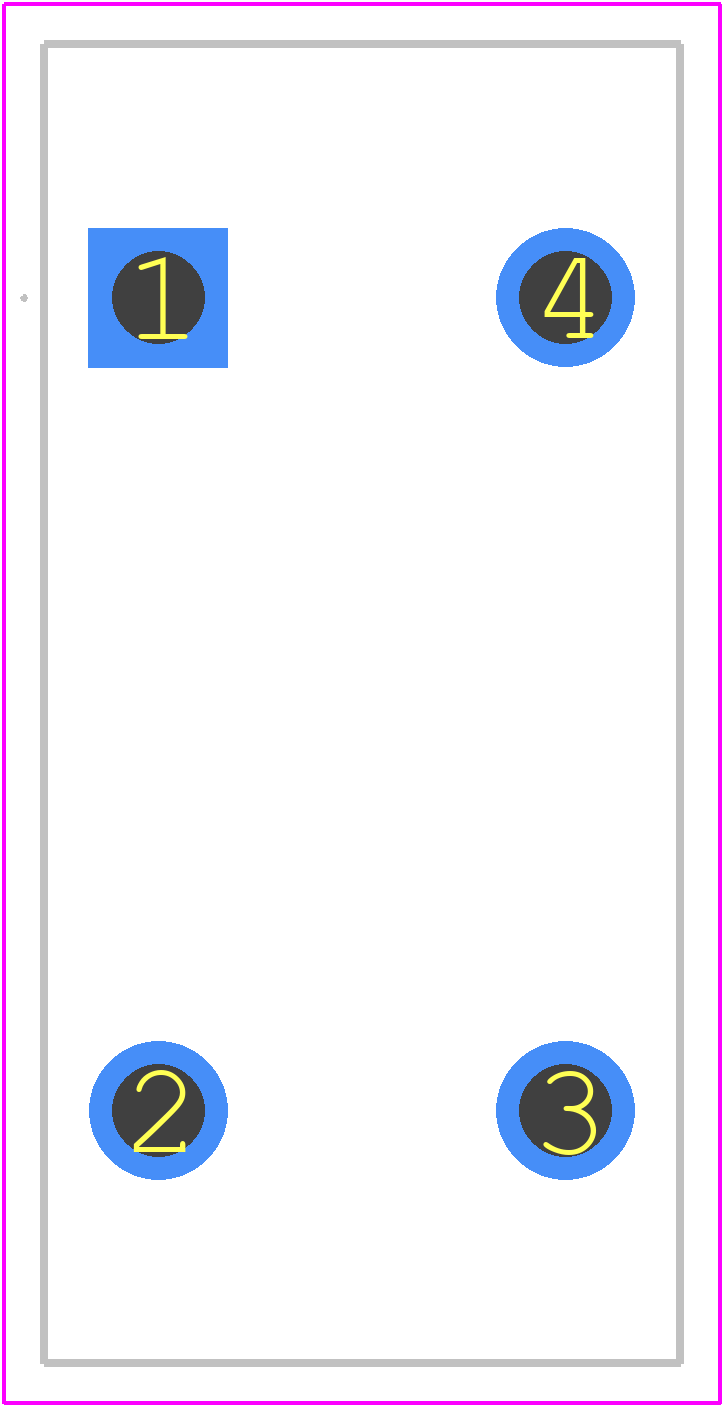

CMT1-15.0-1L - COILCRAFT PCB footprint - Other - Other - CMT1-15.0-1L-2
click to zoom
3D Models
CMT1-15.0-1L - COILCRAFT - 3D model - Other - CMT1-15.0-1L-2
click to zoom

CMT1-15.0-1L Details

  • Manufacturer Part Number:

    CMT1-15.0-1L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.1

  • Approvals:

    UL

  • DC Resistance-Max:

    0.43 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    29.4 mm

  • Inductance:

    15000 µH

  • JESD-609 Code:

    e2

  • Length:

    33 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    160400 OHM Ω

  • Packing Method:

    TRAY

  • Rated Current:

    1 A

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Width:

    15.9 mm

CMT1-15.0-1L Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB pad layout in their application notes, which includes a rectangular pad with a size of 2.5 mm x 1.5 mm and a thermal relief pattern to ensure good solderability and thermal dissipation.
  • Coilcraft recommends using a secure mounting method, such as adhesive or a mechanical clamp, to prevent the inductor from shifting or vibrating excessively. Additionally, using a potting compound or conformal coating can help to further secure the inductor and protect it from environmental stresses.
  • The CMT1-15.0-1L has an operating temperature range of -40°C to +125°C, with a maximum storage temperature range of -40°C to +150°C. However, it's recommended to derate the inductor's current rating at higher temperatures to ensure reliable operation.
  • Yes, the CMT1-15.0-1L is designed for high-current switching applications, but it's essential to ensure that the inductor is properly sized for the application and that the current rating is not exceeded. Coilcraft provides guidance on current derating and saturation prevention in their application notes.
  • Coilcraft recommends using a impedance analyzer or an LCR meter to measure the inductance of the CMT1-15.0-1L. It's essential to follow the manufacturer's measurement guidelines and to ensure that the measurement setup is properly calibrated to obtain accurate results.
