Part Image

CMX469AD3 - CML Micro

Description: Full duplex FFSK/MSK modem,CMX469AD3

Download CMX469AD3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

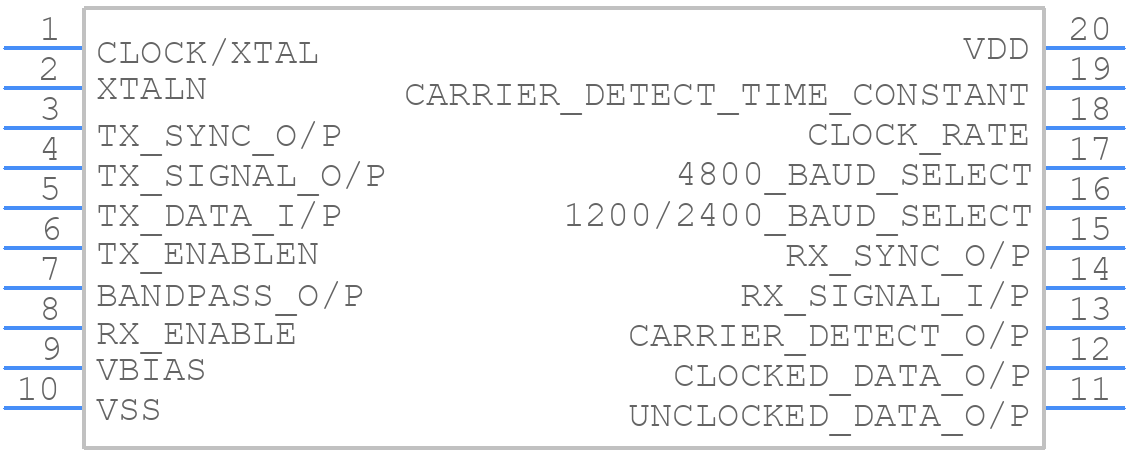

Symbol
CMX469AD3 - CML Micro - PCB symbol
click to zoom
PCB Footprints
CMX469AD3 - CML Micro PCB footprint - Small Outline Packages - Small Outline Packages - sop-20
click to zoom
3D Models
CMX469AD3 - CML Micro - 3D model - Small Outline Packages - sop-20
click to zoom

CMX469AD3 Details

  • Manufacturer Part Number:

    CMX469AD3

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    CML Microcircuits Plc

  • Data Rate:

    4 Mbps

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.76 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.67 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    MODEM

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.425 mm

CMX469AD3 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CMX469AD3 is 4.5V to 5.5V.
  • To configure the CMX469AD3 for optimal performance, ensure that the input signal is properly terminated, use a suitable power supply decoupling capacitor, and optimize the output load impedance.
  • The maximum power dissipation of the CMX469AD3 is 1.5W.
  • Yes, the CMX469AD3 is rated for operation up to 85°C, but ensure that the device is properly heat-sinked and follow the recommended thermal design guidelines.
  • To troubleshoot issues with the CMX469AD3, check the power supply voltage, input signal integrity, and output load impedance. Also, ensure that the device is properly configured and terminated.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMX469AD3 Overview

Use the download button to access the CMX469AD3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMX46, or try a keyword search, such as Modems
