CMX469AE2 - CML Micro

Description: Modulator / Demodulator Duplex Multi-mode FFSK/MSK Modem

Download CMX469AE2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

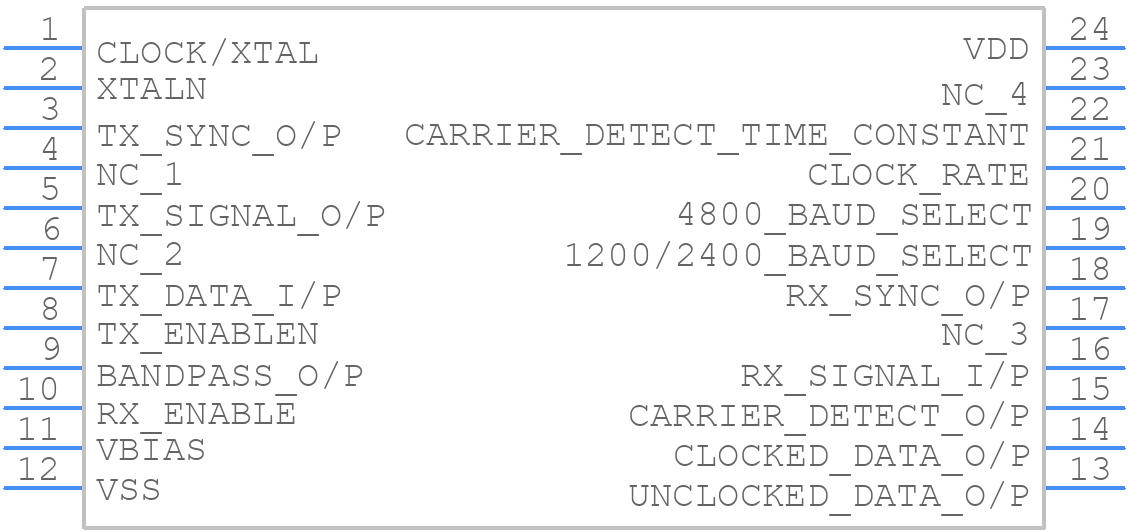

CMX469AE2 - CML Micro - PCB symbol
click to zoom
PCB Footprints
CMX469AE2 - CML Micro PCB footprint - Small Outline Packages - Small Outline Packages - CMX469AE2
click to zoom
3D Models
CMX469AE2 - CML Micro - 3D model - Small Outline Packages - CMX469AE2
click to zoom

CMX469AE2 Details

  • Manufacturer Part Number:

    CMX469AE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    CML Microcircuits Plc

  • Data Rate:

    4 Mbps

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    7.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    MODEM

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

CMX469AE2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CMX469AE2 is 4.5V to 5.5V.
  • To configure the CMX469AE2 for optimal performance, ensure that the input signal is within the recommended voltage range, and that the device is properly decoupled with capacitors. Additionally, ensure that the device is operated within the recommended temperature range.
  • The maximum power dissipation of the CMX469AE2 is 500mW.
  • Yes, the CMX469AE2 can be used in high-temperature applications up to 125°C, but the device's performance and reliability may be affected.
  • To troubleshoot issues with the CMX469AE2, check the input signal, power supply, and decoupling capacitors. Ensure that the device is operated within the recommended voltage and temperature ranges. If issues persist, consult the datasheet and application notes or contact CML Microcircuits Plc support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMX469AE2 Overview

Use the download button to access the CMX469AE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMX46, or try a keyword search, such as Modems
