CMX901QT8 - CML Micro

Description: RF Amplifier 1W RF Power Amplifier

Download CMX901QT8 Model

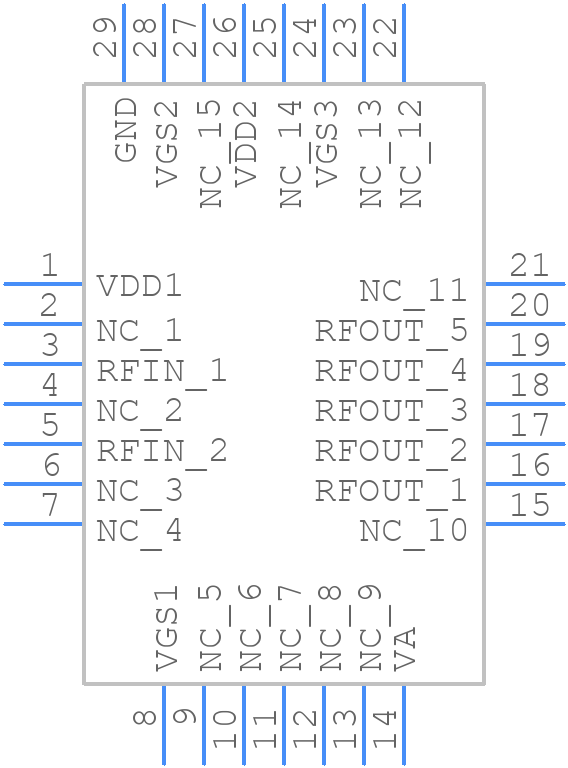

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CMX901QT8 - CML Micro PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - WQFN
click to zoom
3D Models
CMX901QT8 - CML Micro  - 3D model - Quad Flat No-Lead - WQFN
click to zoom

CMX901QT8 Details

  • Manufacturer Part Number:

    CMX901QT8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WQFN-28

  • Manufacturer:

    CML Microcircuits Plc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    31 dB

  • Input Power-Max (CW):

    15 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Frequency-Max:

    950 MHz

  • Operating Frequency-Min:

    130 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Power Supplies:

    4 V

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Surface Mount:

    YES

  • VSWR-Max:

    10

CMX901QT8 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CMX901QT8 is 2.2V to 3.6V.
  • To configure the CMX901QT8 for optimal performance, ensure that the input signal is within the recommended voltage range, and that the device is properly biased. Additionally, ensure that the device is operated within the recommended temperature range of -40°C to 85°C.
  • The maximum power consumption of the CMX901QT8 is 35mA at 3.3V supply voltage.
  • Yes, the CMX901QT8 can be used in high-temperature environments up to 85°C. However, it's recommended to derate the device's power consumption and operating frequency to ensure reliable operation.
  • To troubleshoot issues with the CMX901QT8, check the power supply voltage, input signal integrity, and device biasing. Also, ensure that the device is operated within the recommended temperature range and that the PCB layout is optimized for high-frequency operation.
