CMX970Q7 - CML Micro

Description: Modulator / Demodulator IF/RF Quadrature Demodulator

Download CMX970Q7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

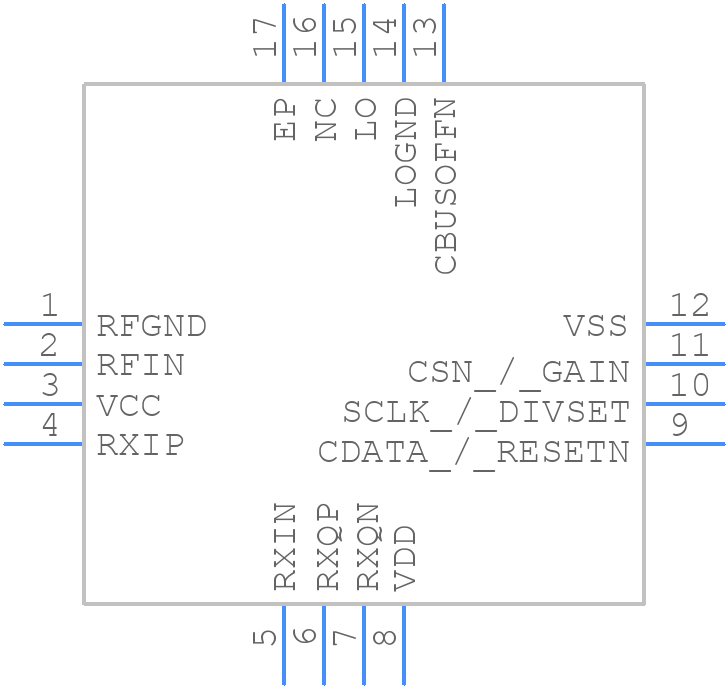

CMX970Q7 - CML Micro - PCB symbol
click to zoom
PCB Footprints
CMX970Q7 - CML Micro PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CMX970Q7
click to zoom
3D Models
CMX970Q7 - CML Micro - 3D model - Quad Flat No-Lead - CMX970Q7
click to zoom

CMX970Q7 Details

  • Manufacturer Part Number:

    CMX970Q7

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    CML Microcircuits Plc

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

CMX970Q7 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the CMX970Q7 is 4.5V to 5.5V, with a typical voltage of 5V.
  • To configure the CMX970Q7 for optimal performance, ensure that the device is operated within the recommended voltage range, and that the input and output impedance are matched to minimize signal reflections. Additionally, proper PCB layout and decoupling are crucial for optimal performance.
  • The maximum power dissipation of the CMX970Q7 is 500mW, with a typical power dissipation of 250mW. It's essential to ensure that the device is operated within the recommended power dissipation limits to prevent overheating and damage.
  • To troubleshoot issues with the CMX970Q7, start by verifying the power supply voltage and ensuring that it is within the recommended range. Check the input and output signals for any signs of distortion or clipping. Also, review the PCB layout and ensure that it is properly decoupled and laid out to minimize signal reflections and noise.
  • Yes, the CMX970Q7 is suitable for high-frequency applications, with an operating frequency range of up to 100MHz. However, it's essential to ensure that the device is properly matched and terminated to minimize signal reflections and losses at high frequencies.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CMX970Q7 Overview

Use the download button to access the CMX970Q7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like CMX97, or try a keyword search, such as Other Telecom ICs
