Crydom recommends using a heatsink with a thermal resistance of 1.5°C/W or lower to ensure proper thermal management. A suitable heatsink would be the Aavid Thermalloy 51782B, but it's essential to verify the compatibility and performance with your specific application.
While the CMXE200D3 is designed to be rugged, it's still important to ensure that the device is properly secured and mounted to withstand vibrations. Crydom recommends following the recommended mounting procedures and using a vibration-dampening material, such as a silicone adhesive, to minimize the risk of damage or malfunction.
To minimize the impact of electrical noise and EMI, Crydom recommends using a shielded cable for the input and output connections, and ensuring that the device is properly grounded. Additionally, using a common-mode choke or a ferrite bead on the input lines can help to filter out high-frequency noise.
The CMXE200D3 can handle surge currents up to 10 times the rated current for a duration of 10ms. However, it's essential to ensure that the device is properly sized for the application and that the surge current does not exceed the maximum rating to avoid damage or malfunction.
Yes, the CMXE200D3 can be used in a redundant or parallel configuration to achieve higher power ratings or to provide redundancy in critical applications. However, it's essential to ensure that the devices are properly synchronized and that the system is designed to handle the increased power and thermal requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CMXE200D3 Overview

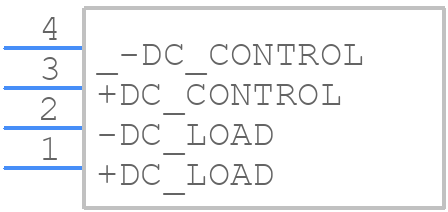

Use the download button to access the CMXE200D3 schematic symbol, PCB footprint, and 3D model.
