Broadcom recommends a layout with a minimum of 8mm creepage distance between the input and output pins to ensure electrical isolation. A good practice is to use a guard ring around the input pins to prevent electrical noise from coupling to the output.
To ensure reliability, follow the recommended operating temperature range of -40°C to 100°C. Also, consider the derating of the current transfer ratio (CTR) with temperature, and ensure that the device is not exposed to excessive humidity or moisture.
The maximum allowable voltage for the CNY17-2-360E is 5300Vrms for 1 minute, as per the IEC 60747-5-5 standard. However, it's recommended to operate the device within the specified voltage ratings to ensure reliable operation.
The CNY17-2-360E is suitable for high-frequency applications up to 100 kHz. However, the device's bandwidth and rise/fall times should be considered when designing the circuit. It's recommended to consult the datasheet and application notes for more information.
To troubleshoot issues, start by verifying the input and output voltage levels, and ensure that the device is properly powered. Check for any signs of physical damage, and verify that the device is properly soldered to the PCB. If issues persist, consult the datasheet and application notes, or contact Broadcom's technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
CNY17-2-360E Overview

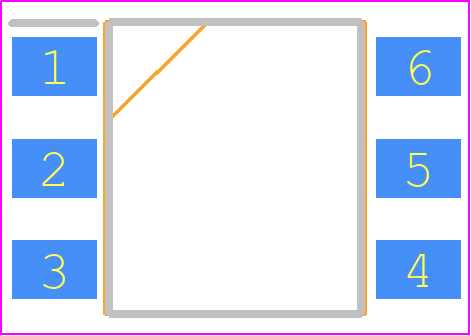

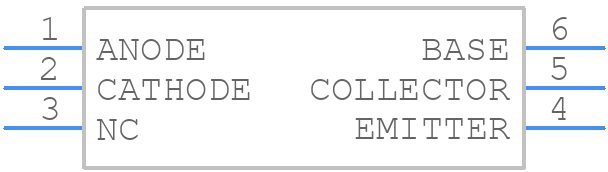

Use the download button to access the CNY17-2-360E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CNY17,
or try a keyword search, such as Optocoupler
