CNY17-3S-TA1 footprint, schematic symbol and 3D model by Lite-On

Symbol

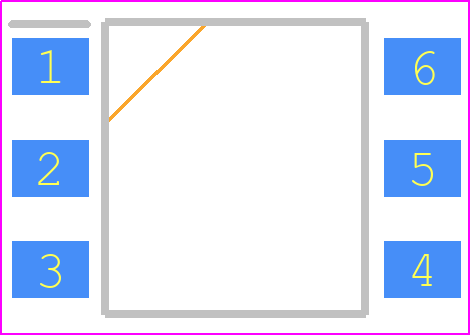

PCB Footprints

3D Models

CNY17-3S-TA1 Details

The recommended operating temperature range for the CNY17-3S-TA1 is -40°C to 100°C.
To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet, and to provide adequate heat sinking and thermal management.
The maximum allowable voltage for the CNY17-3S-TA1 is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
To choose the correct current-limiting resistor, calculate the required resistance value based on the desired LED current and voltage drop, and select a resistor with a power rating that can handle the expected power dissipation.
The typical response time of the CNY17-3S-TA1 is around 10-20 μs, but this can vary depending on the specific application and operating conditions.

Community Provided

System Verified

Community Approved

Use the download button to access the CNY17-3S-TA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CNY17, or try a keyword search, such as Optocoupler
