CNY171SM - onsemi

Description: DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage; UL1577, 4,170 VACRMS for 1 Minute; Very Low Coupled Capacitance Along With No Chip-to-Pin 6 Base Connection for Minimum Noise Susceptability (CNY17FXM, MOC8106M); Minimizes Unit-to-Unit Variation; Safety and Regulatory Approvals:; Current Transfer Ratio In Select Groups; High BVCEO: 70 V Minimum (CNY17XM, CNY17FXM, MOC8106M); Closely Matched Current Transfer Ratio (CTR)

Download CNY171SM Model

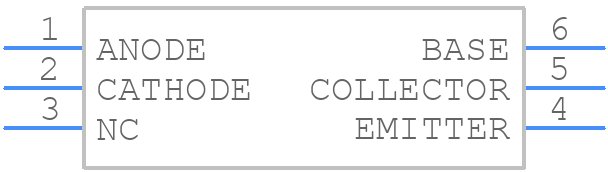

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
CNY171SM - onsemi PCB footprint - Other - Other - CNY171SM-1
click to zoom

CNY171SM Details

  • Manufacturer Part Number:

    CNY171SM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    40%

  • Current Transfer Ratio-Nom:

    40%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.65 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.00001 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

CNY171SM Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the CNY171SM involves keeping the LED and phototransistor pins as close together as possible to minimize stray capacitance and ensure reliable operation. A ground plane under the device can also help reduce noise and electromagnetic interference.
  • To ensure proper biasing, the LED should be forward-biased with a current between 1-10 mA, and the phototransistor should be reverse-biased with a voltage between 5-30 V. The recommended biasing conditions can be found in the datasheet.
  • The CNY171SM is rated for operation from -40°C to 100°C, but the device's performance may degrade at extreme temperatures. It's essential to ensure the device is operated within the recommended temperature range for reliable operation.
  • The CNY171SM has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. This includes using anti-static wrist straps, mats, and packaging materials, as well as avoiding direct contact with the device's pins.
  • The typical response time of the CNY171SM is around 10-20 μs, but this can vary depending on the specific application and operating conditions. The response time can be affected by factors such as the LED current, phototransistor bias, and temperature.
