Part Image

CNY17F3SM - onsemi

Description: Optoisolator Transistor Output 4170Vrms 1 Channel 6-SMD,200% @ 10mA,50mA,400mV -40°C ~ 100°C

Download CNY17F3SM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

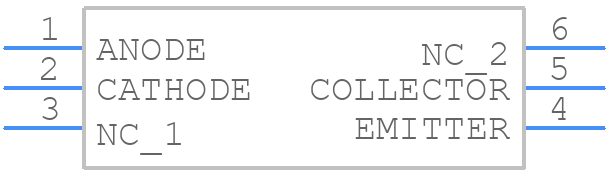

Symbol
CNY17F3SM - onsemi - PCB symbol
click to zoom
PCB Footprints
CNY17F3SM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP6 8.51x6.35, 2.54P CASE 646BY ISSUE A_2026
click to zoom

CNY17F3SM Details

  • Manufacturer Part Number:

    CNY17F3SM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.65 V

  • Isolation Voltage-Max:

    4500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000004 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

CNY17F3SM Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the CNY17F3SM is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the datasheet's thermal derating curve.
  • The maximum allowable voltage for the CNY17F3SM is 70 V, but it is recommended to operate the device at a voltage below 60 V to ensure reliable operation.
  • To choose the correct current-limiting resistor, calculate the resistor value based on the desired LED current and the voltage supply using Ohm's law (R = V / I).
  • The typical response time of the CNY17F3SM is around 10 μs, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

CNY17F3SM Overview

Use the download button to access the CNY17F3SM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like CNY17, or try a keyword search, such as Optocoupler
