CNY74-4H - Vishay

Description: CNY74-4H Vishay, Optocoupler Quad DC Input Transistor Output, 16-Pin PDIP, Through Hole

Download CNY74-4H Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this CNY74-4H model

Email notifications will be applied after download.

Send part feedback

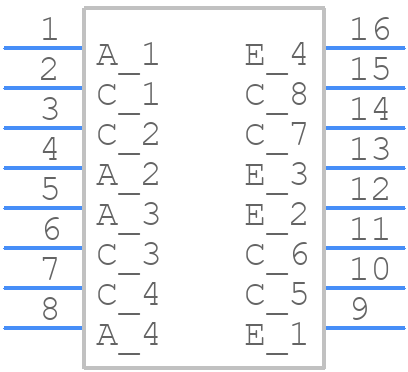

Symbol

CNY74-4H - Vishay - PCB symbol

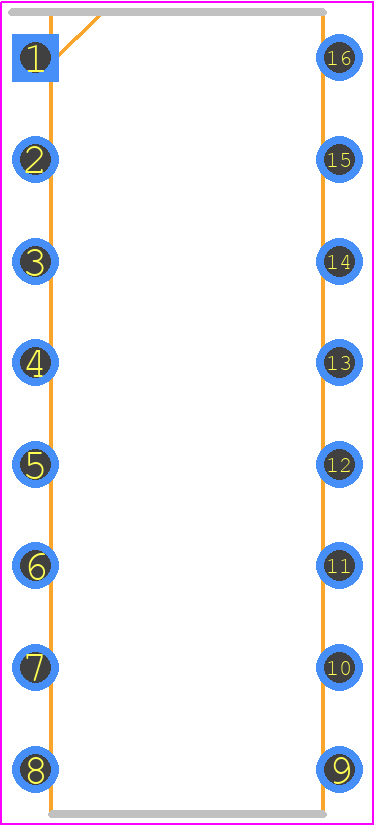

PCB Footprints

CNY74-4H - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16

3D Models

CNY74-4H - Vishay - 3D model - Dual-In-Line Packages - DIP-16

Datasheet Download Datasheet
Stock & Prices Price & Stock for CNY74-4H
Part Number CNY74-4H
Manufacturer Vishay
Pin Count 16
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - DIP-16
Released Date Sep 18, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

CNY74-4H Details

Manufacturer Part Number:
CNY74-4H
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8541.40.80.00
Factory Lead Time:
111 Weeks
Manufacturer:
Vishay Intertechnologies
YTEOL:
0
Additional Feature:
UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min:
70 V
Configuration:
SEPARATE, 4 CHANNELS
Current Transfer Ratio-Nom:
600%
Dark Current-Max:
100 nA
Forward Current-Max:
0.06 A
Isolation Voltage-Max:
5300 V
JESD-609 Code:
e3
Number of Elements:
4
Operating Temperature-Max:
110 °C
Operating Temperature-Min:
-55 °C
Optoelectronic Device Type:
TRANSISTOR OUTPUT OPTOCOUPLER
Terminal Finish:
MATTE TIN

CNY74-4H Frequently Asked Questions (FAQs)

The recommended storage temperature for CNY74-4H is -40°C to 100°C.
Yes, the CNY74-4H is designed for high-reliability applications, with a high isolation voltage of 5300 Vrms and a long lifespan of 100,000 hours.
Yes, the CNY74-4H is rated for operation up to 100°C, making it suitable for high-temperature applications.
The typical rise and fall time of the CNY74-4H is 10 μs and 5 μs, respectively.
Yes, the CNY74-4H is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.

Trust Checks

Community Provided

System Verified

Community Approved

CNY74-4H Overview

Use the download button to access the CNY74-4H schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like CNY74, or try a keyword search, such as Optocoupler
