Part Image

COM-21217 - SparkFun

Description: Display Modules - LED Character and Numeric Red 14-Segment, Alphanumeric 4 Character Common Anode 1.8V ~ 2.4V 20mA 0.630" H x 1.575" W x 0.315" D (16.00mm x 40.00mm x 8.00mm) 16-DIP (0.478", 12.15mm)

Download COM-21217 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this COM-21217 model

Email notifications will be applied after download.

Send part feedback

Symbol

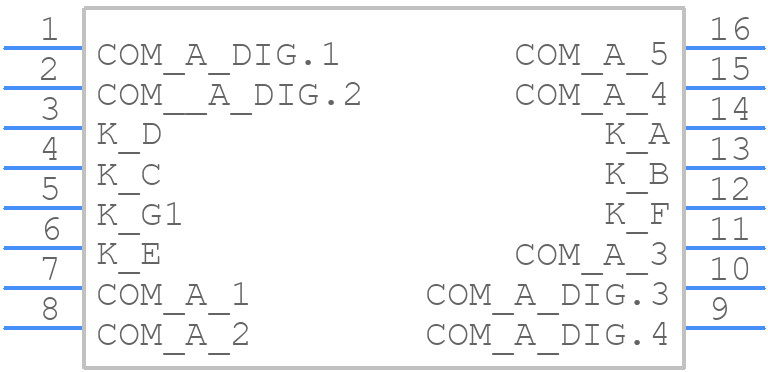

COM-21217 - SparkFun - PCB symbol

PCB Footprints

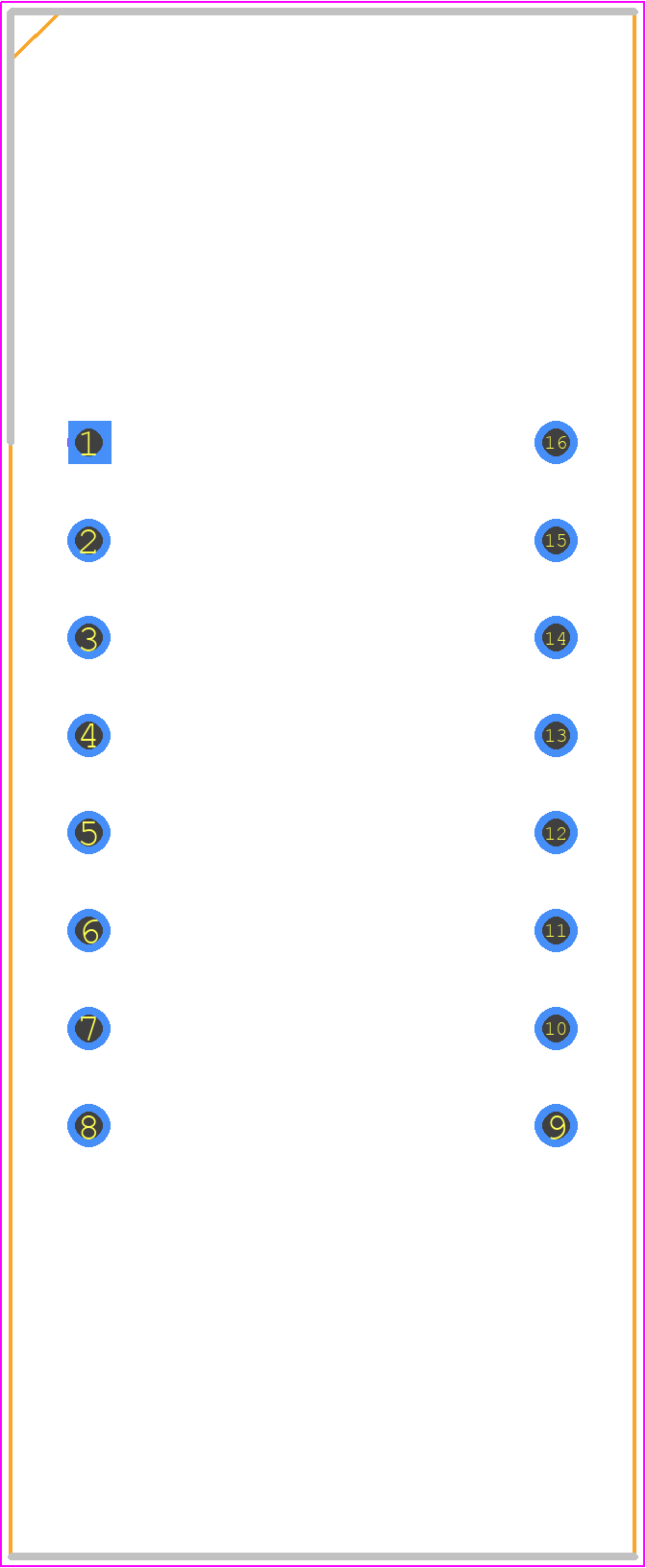

COM-21217 - SparkFun PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-16

Datasheet Download Datasheet
Stock & Prices Price & Stock for COM-21217
Part Number COM-21217
Manufacturer SparkFun
Pin Count 16
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP-16
Released Date May 27, 2024
Last Modified Date May 27, 2024 2:41 PM UTC
Pinout / Pin List Click Here (Member Only)

COM-21217 Details

Manufacturer Part Number:
COM-21217
Manufacturer:
SparkFun Electronics

Trust Checks

Community Provided

System Verified

Community Approved

COM-21217 Overview

Use the download button to access the COM-21217 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like COM-2, or try a keyword search, such as XO
